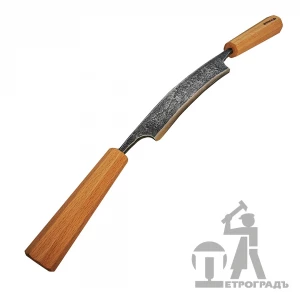

Carpenter drawknife PETROGRAD N5, Swedish type, 170mm
Description

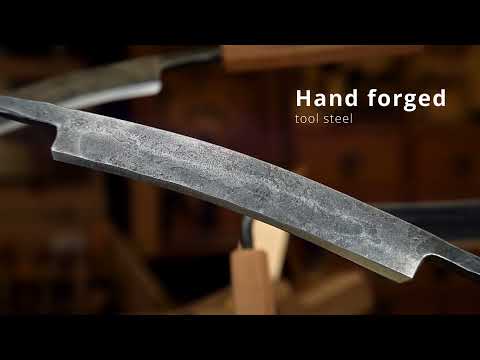

Hand forged drawknife N5 is a drawknife bent in two directions has an advantage over other non-linear drawknives in convenience and control. Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Drawknife of this model is good for fast material removing and for debarking.
- blade made of tool steel 65G (Germany 66Mn4, Ck67, USA 1066)
- hardened to 55-58 HRC
- blade length - 170 mm
- blade width - 36 mm
- blade thickness - 6 mm
- sharpening angle - 30 degrees
- handles lenght - 140 mm
- faceted handles are made of beech
- oil based coating
- total lenght of drawknife n5 is 520 mm
- included leather case with a clasp on the buttons
The design of this model of drawknives, as well as it sharpening, is recommended by the Russian Carpenters Union for carpentry work on fitting logs and for debarking. Other kinds of carpentry work may require regrinding.
Drawnkives are made by Petrograd toolworks in Saint Petersburg Russia
| Blade lengh: | 170 mm |
|---|---|
| Steel: | tool steel 65G |
| Shape: | bent in two directions |
| Handle lenght: | 165 mm |
| Weight: | 0,55 kg |
