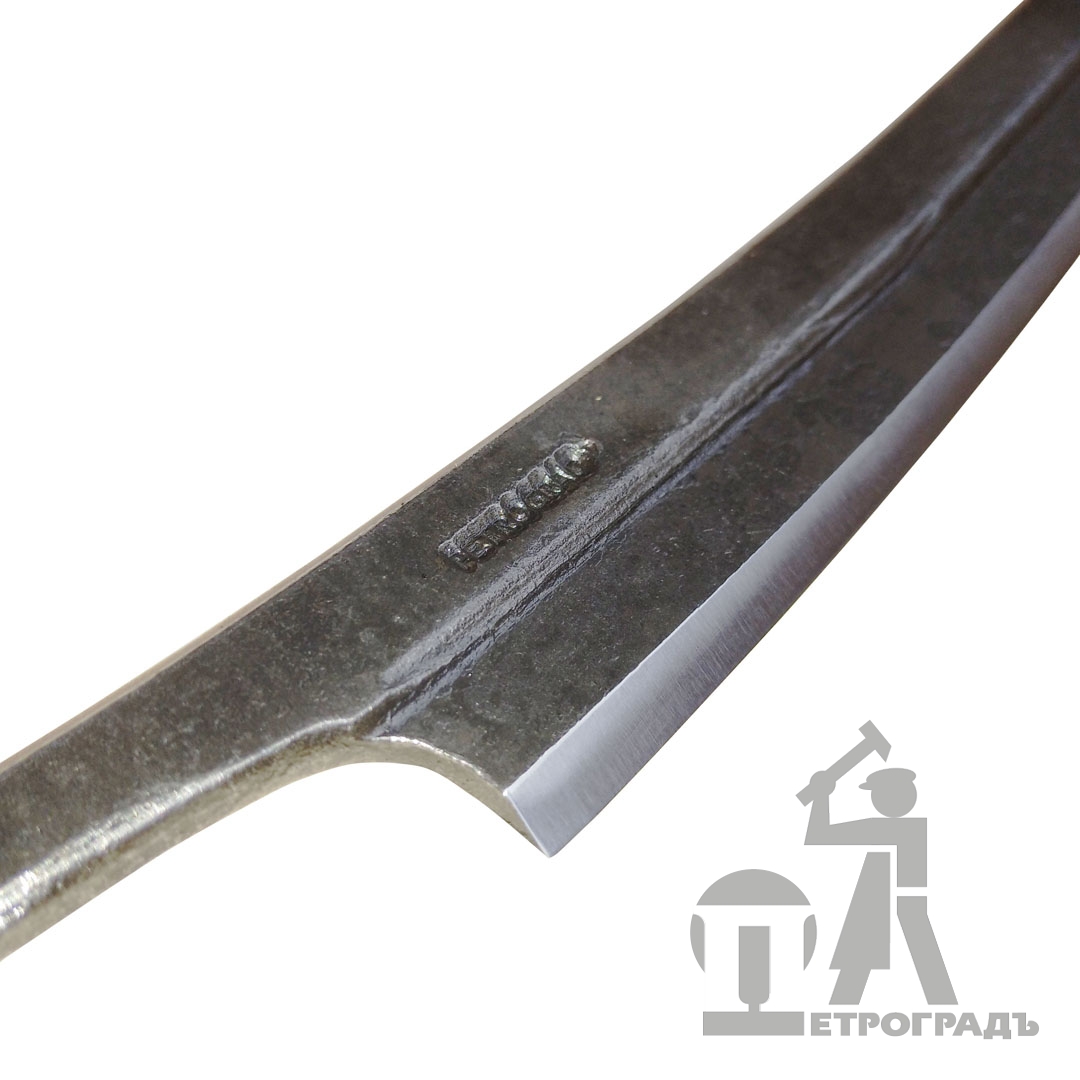

Drawknife PETROGRAD N13 (american type), 170mm



Rating :
(1)
Shipping: worldwide

4100 p (63.06)

Description

The curved staple in two Drawknives will be convenient for various operations in carpentry and joinery. Precise fit and quick material removal is within his power. Perfect for making armchairs, Windsor chairs and cabriole-style curly legs.
The handles are slightly raised above the plane of the blade and allow you to work close to the work surface. The body of the scraper is entirely hand forged from 9XC tool steel and hardened to 55 ... 58 HRC. The bending radius of the blade in both planes is 1100mm. The cutting edge is sharpened at an angle of 30 degrees. A step is made on the working part of the blade to reduce the thickness of the cutting edge. This is done in order to reduce resistance when planing and for ease of sharpening. The RK chamfer is directed downward. The handles are 140mm long, made of beech wood and coated with oil.
The Drawknife PETROGRAD N13 is available in two models. Cutting edge length (RK) - 170mm. Blade width 35 mm, blade thickness - 5 mm.
Supplied in a leather case with clasps.
Factory of joinery and carpentry tools Petrograd (Russia).


Share / Save Link:

Specs

Reviews

Instructions ()

Publications

Recommended products

new

Magazine Master&Workshop 2020 3 (10)

Magazine Master and Workshop 2020 3 (10)
CONTENT
YOUR BUSINESS: SAMARA MASTEROVAYA
PHOTO REPORT: AT THE EXHIBITION "SECOND LIFE OF A TREE"
PRIZE: THE LIST OF THE WORKSHOP OF THE YEAR PRIZE PARTICIPANTS CONTINUES TO GROW!
JOINT BLOGGER LESSONS: MAKING BRASS HINGES
COMPANY HISTORY: DO NOT BE AFRAID TO BE MISTAKE! MISTAKES MADE BY US TODAY ARE OUR STRENGTHS TOMORROW
ROOM PERSON: ALEXANDER VOROBYEV AND HIS FURNITURE WORKSHOP
DO IT YOURSELF: MOXON VISE
PROJECT HISTORY: A PLAIN IN THE GALOP
INTERVIEW: VICTOR SUDNOV: "THE CUTTERS HAVE A SMALL CONTRIBUTION TO THE VICTORY OVER FASCISM"
BUSINESS OF LIFE: SOUL RESTORATION
MARKETRY FROM WOODSIMKA: RUSHING OF SILK, SHELEST OF KISEI
TURNING SHOP: ANOTHER INVENTION OF ANOTHER WHEEL
LATHE SHOP: MAKING ANIMAL FIGURES ON A LATHE
JOYFUL FORGE: WHAT DO THE INAPPROPRIATE FORGEONS DO?
PROJECT HISTORY: SKETCHES BY THE GENIUS LEONARDO DA VINCI
MUSEUM: NOTES ON THE HISTORY AND DEVELOPMENT OF JOINTING TOOLS (PART 8. BONDING TOOLS)
DO IT YOURSELF: GODS DO NOT CUT SPOONS!

500p(63.06)
: 1
>:

Sharpening stone PETROGRAD, 200*70*20mm, 2000 grit

Water stone. 2000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Used for sharpening and setting bevels.

High sharpening performance, second only to diamond, is ensured by the use of silicon carbide abrasive grains, which are notable for their sharpness and brittleness. The high hardness of carbide-silicon grinding materials allows you to confidently process not only carbon steels, but also hard alloys, which is impossible on stones made of electro-alumina powders. In addition to performance, it is worth noting the extraordinary tactile sensations when sharpening a tool. Stones quickly give a slurry and produce a very pleasant sound.

Water stones PETROGRAD are distinguished by high performance and geometry in a state of delivery.
In the characteristic of a water stone are specified: the first letter - hardness (I, J - soft, K - average); Japanese grain size according to JIS R6001-1987 is 150 (80 microns), 360 (34 microns), 500 (24 microns), 1000 (12 microns), 2000 (6 microns) and C is silicon carbide.

Comparison of FEPA, JIS and GOST standards:

2220p(63.06)
: 1
>:

Carpenter's axe PETROGRAD, model Suzdal X, 440mm/100mm

Carpenter's axe. The cutout on the axe allows you to keep it closer to head, which is very convenient for accurate work. Butt can be used as a hammer. The length of the cutting edge 100 mm, the length of the axe 465 mm. Weight 1000 g. The axe is made of excellent steel 65G. The axe undergoes high-quality hardening and forging to a hardness of 58-60 HRc. Forging manually allows you to significantly increase strength. The handle is made of solid maple wood and impregnated with tung oil to prevent rotting. The axe is mounted on the handle with the help of two wooden wedges. Includes a genuine leather case for protecting blade.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.



8500p(63.06)
: 2
>:
new

Froe PETROGRAD, model Uglich 300

Froe is a special cleaving axe (cleaver) for green woodworking, bodging and spoon making. Long blade and perpendicularly handle make it easy to split wood along the grain. Thick blade back would be good to use with mallet or even log*. Froe axe also good for split logs for fireplace, stove or even for making wood shingles and wooden blanks for spoons.

Edge is lenticular sharpened. Froe "Uglich" by petrograd toolworks is perfect choice for making blanks for spoon making. Froe axe is hand forged and totally made in Saint-Petersburg Russia

7200p(63.06)
: 1
>:

Bench chisel PETROGRAD 10 mm

Chisels PETROGRAD. Blade length - from 120mm to 160mm; width - 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 26mm, 32mm, 40mm, 50mm. The total length is from 250mm to 295mm. The chisels are specially made based on the experience of the old masters of carpentry. The blade is made of high-alloy chrome-manganese tool steel and hardened to 60HRc. The edges of the web are chamfered towards the edges, but at the same time the edges of the web have a constant thickness. This design allows you to work comfortably in hard to reach places and especially with dovetail connections. Comfortable hornbeam handle, handle size - 130x30mm and 135x30mm. The handle at the junction with the blade is reinforced with a brass ring with a leather pad

1520p
: 1
:

Bench chisel PETROGRAD 50 mm

Bench chisel PETROGRAD. The length of the blade 120mm; width - 50mm. Overall length 250mm.These chisels have a classic design with blades that are bevel-edged to a narrow land on each side, providing excellent clearance when trimming into an angled corner such as in dovetail work, as well as reducing sidewall friction when working in a tight recess. Chisels are made focusing on the experience of old masters of woodworking. The blade is made of high-alloyed chrome-manganese steel and hardened to 60HRc. Comfortable hornbeam handle. The handle at the junction with the blade reinforced brass ring with leather gasket.

3230p
: 1
:

Set of bench chisels , in tool roll, 8 pcs (6,8,10,12,16,20,26,32mm)

Set of bench chisels PETROGRAD. The length of the blade - from 120mm to 160mm; width - 6mm, 8mm, 10mm, 12mm, 16mm, 20mm, 26mm, 32mm. Overall length - from 250mm to 295mm.These chisels have a classic design with blades that are bevel-edged to a narrow land on each side, providing excellent clearance when trimming into an angled corner such as in dovetail work, as well as reducing sidewall friction when working in a tight recess. Chisels are made focusing on the experience of old masters of woodworking. The blade is made of high-alloyed chrome-manganese steel and hardened to 60HRc. Comfortable hornbeam handle. The handle at the junction with the blade reinforced brass ring with leather gasket.

12790p
: 1
:

Skew chisel PETROGRAD, left-sided, 12mm

Skew chisel PETROGRAD. The angle of inclination of the cutting edge to the chisel axis is 30 degrees. The length of the blade - 130mm; width - 12mm. Overall length 265mm. The blade is made of high-alloyed chrome-manganese tool steel and hardened to 60HRc. The handle is made of hornbeam wood. Included - plastic tip to protect the cutting edge. The handle at the junction with the blade reinforced brass ring with leather gasket.

1340p
: 1
:

Firmer gouge PETROGRAD 12mm

Special gouges with blackened blade, which tapers in hight. Forged blade is made of traditional Cr-Mn steel and is heat treated to 59 Hrc. Improved blade penetration into wood. Combination of the stained hornbeam handle, brass ferrule and improved griding of the blade creates unique design of the tool.

2450p
: 1
:

Sharpening stone PETROGRAD, 200*70*20mm, 1000 grit

Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.





1980p
: 1
:

Carving knife PETROGRAD, Bogorodsky type, 170mm/40mm

Carving knives for general use, as well as for large material removal. Blade length 40mm or 60mm, rounded butt. A comfortable oval redwood handle is saturated with oil and covered with shellac. The length of the handle - 115mm. Excellent knife for both beginners and professionals. The 2.5 mm thick blade is made of high carbon steel hardened to 59-61 HRc. All the knives are sharpened and ready to go. Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

1200p
: 1
:

Carving knife PETROGRAD, Bogorodsky type, 190mm/60mm

Carving knives for general use, as well as for large material removal. Blade length 40mm or 60mm, rounded butt. A comfortable oval redwood handle is saturated with oil and covered with shellac. The length of the handle - 115mm. Excellent knife for both beginners and professionals. The 2.5 mm thick blade is made of high carbon steel hardened to 59-61 HRc. All the knives are sharpened and ready to go. Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

1400p
: 1
:

Sharpening set PETROGRAD N1, for woodworking tools, 3 stones

Water stones. Grain size: 150, 360, 500, 800, 1000, 1500 and 2000. Size 200x70x20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

To select and order an abrasive stone of desired grain size, click on the name of the product.

5240p
: 1
:

Adze PETROGRAD, straight N1, 460mm/75mm

Straight adze.

Forged tempered to hardness of 58-60HRc. The blade are made of spring steel 65 g (Germany 66Mn4, Ck67, USA 1066). The blade width is 74 mm. Total length - 450 mm. Weight - 1.1 kg.

The adze handle is made of maple wood and covered with tung oil and has a curved finish and is fixed on a wooden wedge.

Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia

9600p
