Drawknife PETROGRAD N13 (american type)



4200 p (64.6)
Rating :
Avg. value 5 (by rates of 1 users)

Description

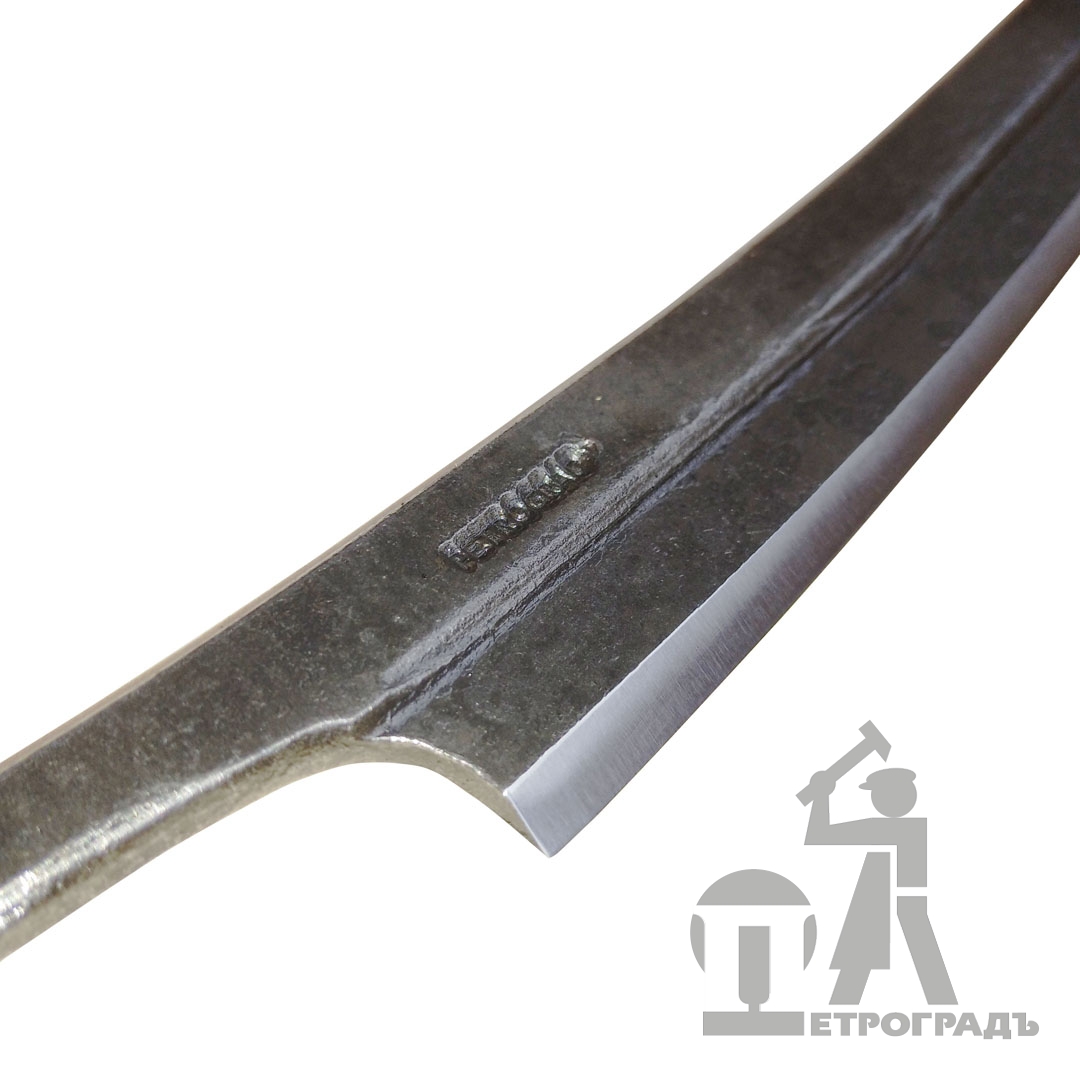

The curved staple in two Drawknives will be convenient for various operations in carpentry and joinery. Precise fit and quick material removal is within his power. Perfect for making armchairs, Windsor chairs and cabriole-style curly legs.
The handles are slightly raised above the plane of the blade and allow you to work close to the work surface. The body of the scraper is entirely hand forged from 9XC tool steel and hardened to 55 ... 58 HRC. The bending radius of the blade in both planes is 1100mm. The cutting edge is sharpened at an angle of 30 degrees. A step is made on the working part of the blade to reduce the thickness of the cutting edge. This is done in order to reduce resistance when planing and for ease of sharpening. The RK chamfer is directed downward. The handles are 140mm long, made of beech wood and coated with oil.
The Drawknife PETROGRAD N13 is available in two models. Cutting edge length (RK) - 270mm. Blade width 35 mm, blade thickness - 5 mm.
Supplied in a leather case with clasps.
Factory of joinery and carpentry tools Petrograd (Russia).


Share / Save Link:

Specs

Reviews

Instructions ()

Нет файлов

Publications

Recommended products

new

Magazine Master and Workshop 2020 3 (10)
CONTENT
YOUR BUSINESS: SAMARA MASTEROVAYA
PHOTO REPORT: AT THE EXHIBITION "SECOND LIFE OF A TREE"
PRIZE: THE LIST OF THE WORKSHOP OF THE YEAR PRIZE PARTICIPANTS CONTINUES TO GROW!
JOINT BLOGGER LESSONS: MAKING BRASS HINGES
COMPANY HISTORY: DO NOT BE AFRAID TO BE MISTAKE! MISTAKES MADE BY US TODAY ARE OUR STRENGTHS TOMORROW
ROOM PERSON: ALEXANDER VOROBYEV AND HIS FURNITURE WORKSHOP
DO IT YOURSELF: MOXON VISE
PROJECT HISTORY: A PLAIN IN THE GALOP
INTERVIEW: VICTOR SUDNOV: "THE CUTTERS HAVE A SMALL CONTRIBUTION TO THE VICTORY OVER FASCISM"
BUSINESS OF LIFE: SOUL RESTORATION
MARKETRY FROM WOODSIMKA: RUSHING OF SILK, SHELEST OF KISEI
TURNING SHOP: ANOTHER INVENTION OF ANOTHER WHEEL
LATHE SHOP: MAKING ANIMAL FIGURES ON A LATHE
JOYFUL FORGE: WHAT DO THE INAPPROPRIATE FORGEONS DO?
PROJECT HISTORY: SKETCHES BY THE GENIUS LEONARDO DA VINCI
MUSEUM: NOTES ON THE HISTORY AND DEVELOPMENT OF JOINTING TOOLS (PART 8. BONDING TOOLS)
DO IT YOURSELF: GODS DO NOT CUT SPOONS!

500p(64.6) In stock

Water stone. 2000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Used for sharpening and setting bevels.

High sharpening performance, second only to diamond, is ensured by the use of silicon carbide abrasive grains, which are notable for their sharpness and brittleness. The high hardness of carbide-silicon grinding materials allows you to confidently process not only carbon steels, but also hard alloys, which is impossible on stones made of electro-alumina powders. In addition to performance, it is worth noting the extraordinary tactile sensations when sharpening a tool. Stones quickly give a slurry and produce a very pleasant sound.

Water stones PETROGRAD are distinguished by high performance and geometry in a state of delivery.
In the characteristic of a water stone are specified: the first letter - hardness (I, J - soft, K - average); Japanese grain size according to JIS R6001-1987 is 150 (80 microns), 360 (34 microns), 500 (24 microns), 1000 (12 microns), 2000 (6 microns) and C is silicon carbide.

Comparison of FEPA, JIS and GOST standards:

2 220p(64.6) In stock

Carving chisels.
The model range includes straight chisels with a width of 2mm, 4mm, 6mm, 8mm, 10mm, 12mm, 14mm. Chisels are made of steel 65 G (Germany 66Mn4, Ck67, USA 1066) and have beech handles coated with tung oil. Blade length - 35 mm, total length - 180 mm, sharpening angle - 30 degrees, blade thickness - 2 mm.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia

1 000p

Adze N2 created on the basis of a study of ancient tools, made in the northern regions of Russia and now stored in our Museum of Ancient Instruments.

Forged tempered to hardness - 58-60HRc. The adze is made of spring steel 65 g (Germany 66Mn4, Ck67, USA 1066). The width of the blade is 70 mm. Total length - 500 mm. Weight - 1.3 kg.

Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia

9 500p

Marking knives PETROGRAD have a unilateral right or left sharpening and bevel at an angle of 30 and 45 degrees. The blade of the knife is made of high carbon steel and hardened to 59HRC, it passes through the entire handle - this allows you to use it not only as a marking knife, but also as a power knife jamb. Blade thickness - 1.7mm, width - 19mm. The lining is made of beech wood, covered with tung oil and fastened with brass rivets. The length of the knife is 165mm, the blade is 70mm.

1 000p

Classy axe for cutting meat. Forged tempered blade has a hardness of 58-60HRc. The axe is made of 9XC (DIN - 150Cr14) alloyed tool steel. Half round cutting edge. Sharpening 30 degrees. The axe handle is made of maple wood, covered with tung oil and has a curved finish.Fixed to the cross with two wooden wedges. Comes with a leather case with a fixation on the buttons.

The width of the forging is 220 mm, the ax handle is 370 mm long, the total length is 450 mm, and the weight is 2000 g.

Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.

12 000p

Checkering tool C-1 has 1 pyramidal tooth. Angle top 90 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Checkering tool C-1 is designed for applying the original layout of the picture, as well as for deepening the grooves after their application, with other cutters.
The wooden handle is made of beech, well balanced and lies comfortably in your hand.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter doesnt look like cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Equal each element is obtained.

The width of the working part is 5 mm, the length of the working part is 11 mm, the apex angle 90 degrees.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

1 000p

Checkering tool No2. Both sides with teeth. Used for the application of grooves and their deepening after application. One blade runs along the guideline, while the other marks the next groove. When moving to the next groove, the tool deepens it and again applies the next groove. Cutter 2 It is a combination of tools for expanding and deepening grooves. Beech handle. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.



1 000p

Checkering tool S-1 has 1 pyramidal tooth. Angle of the top is 90 degrees. The cutter has a convenient beech handle and a rod with a sharp bend perpendicular to the cutting axis and the working part installed on it. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.

It is V-shaped with teeth on both sides. Designed to handle corners and bends, as well as hard-to-reach places.

Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.

The cutter has not matter what cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Every element is smooth and beautiful.

The width of the working part is 5 mm, the length of the working part is 5 mm, the apex angle is 90 °

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

1 000p

Half round carving chisel PETROGRAD designed for threading medium-sized parts and for detailing small forms. Made of 65G (Germany 66Mn4, Ck67, USA 1066) forged steel. The beech handle is barrel-shaped, which makes it possible to securely and conveniently hold the chisel without tiring the wrist. Coating oil wax. The length of the handle - 140 mm, the total length - 175 mm, width - 10 mm.

Designed for both amateurs and professionals engaged in medium-sized products.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

1 200p

Насадка на резец для чекеринга C-1, 90° (одна РК) имеет 1 пирамидальный зуб. Уголы вершин 90 и 60 градусов. Все резцы изготовлены из стали, прошли процесс закалки и обработки. Имеют V-образную форму. Резецы С-1 предназначен для нанесения оригинального макета рисунка, а также для углубления канавок после их нанесения, другими резцами. Высокая рельефность обеспечивает быструю и ровную нарезку на твердых породах древесины. Резцы могут резать, как глубокие так и мелкие пазы, прямые или закругленные углы, параллельные линии или перекрестную штриховку, по направлению волокна или поперек. Не нужно заново делать проход, чтобы обработать неровные участки. При определенных навыках ровной получается каждая канавка.

Производство - фабрика столярных и плотницких инструментов ПЕТРОГРАДЪ.

Сделано в России

450p

Насадка на резец для чекеринга S-1, 90° (одна РК) имеет 1 пирамидальный зуб. Углы вершин 90 и 60 градусов. Все резцы изготовлены из стали, прошли процесс закалки и обработки. Имеют V-образную форму. Резцы S-предназначен для обработки углов и изгибов, а также труднодоступных мест. Высокая рельефность обеспечивает быструю и ровную нарезку на твердых породах древесины. Резцы могут резать, как глубокие так и мелкие пазы, прямые или закругленные углы, параллельные линии или перекрестную штриховку, по направлению волокна или поперек. Не нужно заново делать проход, чтобы обработать неровные участки. При определенных навыках ровной получается каждая канавка.

Производство - фабрика столярных и плотницких инструментов ПЕТРОГРАДЪ.

Сделано в России

450p
