Description

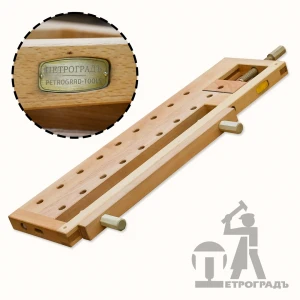

Design features: beech shield of our own production with symmetrically placed two rows of mounting holes for 19 mm tuning pegs. The workbench comes with 2 pegs. On the front side, the workbench has a number of threaded holes (4 holes) for installing clamp screws. The diameter of the wooden screws is 25 mm. A vise with a wooden screw and a 19 mm hole for pegs is installed at the end, the jaws of which are covered with leather pads to prevent jamming of the workpieces. The harness is assembled on a straight open thorn-eye and reinforced with a dowel made of hardwood.
To avoid cracking and deformation of the workbench, as well as breakage of wooden screws during transport, the screws have been removed from the workbench. Two short screws are simply screwed into the front holes. Before installing the long screw, it is necessary to unscrew two self-tapping screws from the cracker and remove two keys. Then screw the wooden screw all the way into the cracker and install the dowels back, tighten the self-tapping screws. Crackers and wooden screws are made to compensate for seasonal fluctuations in humidity. It does not affect working qualities and functionality, but prevents jamming of moving elements and unnecessary stress on the workbench.
The workbench (Milkmans workbench) is symmetrical, two planes are working, that is, it is convenient to use both left-handers and right-handers.
Additional features of the tabletop workbench:
The maximum length of the workpiece clamped in the pegs is 710 mm.
Dimensions of the workpiece clamped in a vice (cracker) - 125x110 mm.
Dimensions of the part clamped in a longitudinal vice with two screws - 630x50 mm
Design and execution by RUBANKOV carpentry master Sasin Vladimir Ivanovich.
made in Russia.
