Diamond T-Bar Dresser



Rating :
(1)
Shipping: worldwide

3000 p (46.14) out of stock

Description

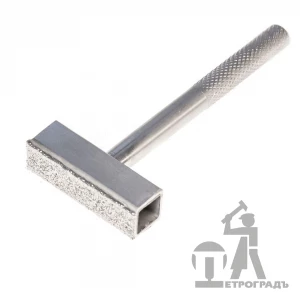

Diamond Dresser for Grinding wheels. Any grinding abrasive wheel loses its evenness and abrasive ability (becomes greasy). Diamond t-bar quickly solves this problem by removing some of the abrasive wheel surface to flatten the geometry of the contact point.

The work surface of diamond dresser is 14x50mm. This surface is densely covered with diamonds (aprox 36 grit). The length of the bar together with the aluminum handle is 117 mm.

Benefits of diamond T-bar by Petrograd toolworks:

  • is one of the best flatting diamond abrasives on the market.
  • high leveling ability
  • high resistance to chipping
  • square profile means no wobble

Designed for dressing abrasive wheels on ceramic bond. Best for 20-40mm width and 150-300mm in diameter. Consists of a working part and a handle attached to the working part by means of a threaded connection. The working part consists of square rolled products with dimensions 50x15x15 with nickel-diamond coating on one of the side faces of 15x50 mm in size. Material of the working part and handle ST3 GOST 380-94.

*we reserve the right to change the parameters of the product that do not affect the quality of work.
