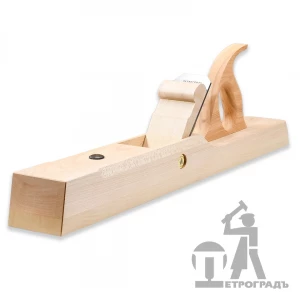

Wooden jointer plane PETROGRAD, 60mm/600mm
Description
Traditional wooden jointer. The plane is made of maple with brass insert for reliable fixation of the blade, the sole is made of hornbeam, the handle is made of paduk. Coating - tung oil and wax. The wedge is also made of maple. The installation angle of the knife is 50°. The blade is made of alloyed tool steel 9XC (DIN - 150Cr14) hardened to 59-61 HRC. Blade dimensions: length - 175 mm, width - 60 mm, knife thickness minimum 3.5 mm, maximum thickness - 4.8 mm. Sharpening angle 25° with microbevel 30°. Dimensions of jointer plane 600 * 80 * 175 mm.
All blades are wedge-shaped with a wedge angle of 0.5 degrees, which favorably distinguishes them from others, and are ideally suited for wooden planes with wedge fixation.
Blades have two sides - one is hard, the other is soft (production feature)
Absolutely every blade is tested with a hardness tester.
The solid side has 2 points from the diamond cone - the test, and the control test.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
The manufacturer reserves the right to change the thickness and appearance of the knife without degrading the working qualities of the tool.
Share / Save Link:
Videos
Specs
Reviews
Instructions ()
Publications
Popular goods
Sharpening set PETROGRAD N1, for woodworking tools, 3 stones
Water stones. Grain size: 150, 360, 500, 800, 1000, 1500 and 2000. Size 200x70x20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.
To select and order an abrasive stone of desired grain size, click on the name of the product.
Center finding dowel/tenon pin set PETROGRAD, D5,6,8,10,12 mm, 2 pcs each
Center finding pins for furniture dowels. Diameter of punch: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm. Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Adze PETROGRAD, straight N1, 460mm/75mm
Straight adze.
Forged tempered to hardness of 58-60HRc. The blade are made of spring steel 65 g (Germany 66Mn4, Ck67, USA 1066). The blade width is 74 mm. Total length - 450 mm. Weight - 1.1 kg.
The adze handle is made of maple wood and covered with tung oil and has a curved finish and is fixed on a wooden wedge.
Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia
Outdoor axe PETROGRAD, model Roslavl X, staright handle
Outdoor axe. Overall length - 580 mm. Axe height - 175 mm. The length of the cutting edge - 165 mm. The axe is forged by hand from 65G (Germany 66Mn4, Ck67, USA 1066) steel. Sharpening straight. Total weight - 1 kg. Includes leather case to protect the blade. The axe handle is made of maple wood, 500 mm long. The axe is perfectly balanced and is suitable for an enormous type of work, like a hiking axe, for small carpentry and carpentry works, and simply as a universal axe.
Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Carving adze PETROGRAD, model N5, 270mm/45mm
Carving adze PETROGRAD.
This adze was developed taking into account the wishes of artisans, as well as our experience in creating carpentry and carving tools. The carving adze is intended for chiseling the internal cavity when creating dishes (trough, broths, cups, bowls, plates, etc.), as well as for roughing the outer surfaces. Scope due to the size of adze.
Developed and designed carving adze - V. Sasin.
The ergonomic handle of maple allows you to securely hold the tool during operation. Expansion at the end of the handle prevents slipping from the hand. The adze handle made of maple and covered with oil. Maple - one of the best wood for the manufacture of handles.
Hand forged blade from steel 65G (Germany 66Mn4, Ck67, USA 1066). Together with the handle has a mass of about 750 grams. Cutting edge sharpening angle - 30 degrees. The width of the working part - 40mm. Cutting edge bending radius - 20mm. If to speak it is applicable to the carving tool - it is 9 profile.
The eye has a wedge shape. The adze handle slides and splits into 3 wedges.
Sharpening the cutting edge - double-sided. This model is considered universal, since the geometry of sharpening is a cross between number 1 and number 3. But not without flaws. It is more deeply able to pierce the wood and sometimes gets stuck.
Any carving adze can be used from the beginning to the end. With experience comes the understanding that all three models must be in the arsenal.
Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Brass hammer PETROGRAD, model N1
This small brass hammer is designed for finishing trimming and driving parts requiring careful handling. Can be used to adjust the plane when setting the knife. Hammer head peens are flat. Turned polished strikers, hammer handle is made of cherry and covered with oil-wax. This tool in addition to the direct appointment also delivers aesthetic pleasure. The mass of the hammerhead is 125 g. The total length of the hammer is 320 mm. The size of the brass hammer striker - 70 x 16 mm (round section)
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Made in Russia.
Bit for checkering tool C-1, 60°
Насадка на резец для чекеринга C-1, 60° (одна РК) имеет 1 пирамидальный зуб. Уголы вершин 90 и 60 градусов. Все резцы изготовлены из стали, прошли процесс закалки и обработки. Имеют V-образную форму. Резецы С-1 предназначен для нанесения оригинального макета рисунка, а также для углубления канавок после их нанесения, другими резцами. Высокая рельефность обеспечивает быструю и ровную нарезку на твердых породах древесины. Резцы могут резать, как глубокие так и мелкие пазы, прямые или закругленные углы, параллельные линии или перекрестную штриховку, по направлению волокна или поперек. Не нужно заново делать проход, чтобы обработать неровные участки. При определенных навыках ровной получается каждая канавка.
Производство - фабрика столярных и плотницких инструментов ПЕТРОГРАДЪ.
Сделано в России
Petrograd Brass Square 85mm, one-side marking
Elbow flat PETROGRAD, 85mm * 50mm. The square is one of the most used measuring tools in joinery. Ruler width 20 mm. Metric markings in 1 mm increments on the outside and inside. The error of the square is 0.05mm per 100mm. Used not only for checking 90 degree angles and marking, but also for setting up tools, saws and other tools. Material - brass. Engraved etched markings for easy reading.
Production of the PETROGRAD factory.
Sharpening stone PETROGRAD, 153*15*15mm, 2000 grit
Sharpening stone PETROGRAD. Granularity: 150, 360, 500, 800, 1000, 1500 and 2000. Size 15x15x153mm. The abrasive grain is silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during work. When sharpening, the steel does not overheat. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Manufactured in Russia.
