Center finding dowel/tenon pin set PETROGRAD, D5 mm, 6 pcs



Rating : (1)
Shipping: worldwide

380 p (5.84)

Description

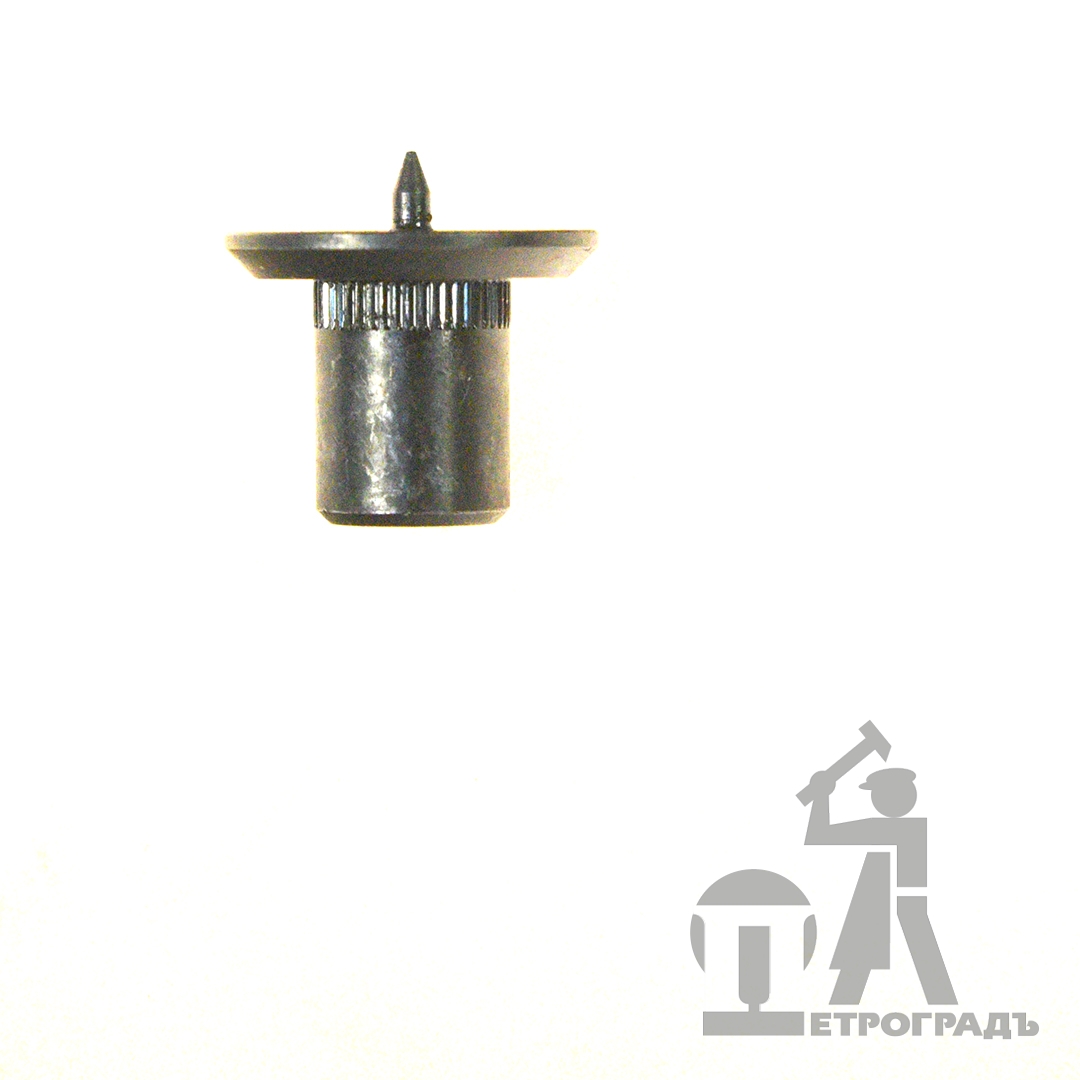

Center finding pins for furniture dowels. Diameter of punch: 5 mm, 6 mm, 8 mm, 10 mm, 12 mm.

The punch of the desired diameter is inserted into the drilled hole under the dowels, after which the marking of the counter holes is carried out.

Features:

1.Hardened to 45HRC
2. Sharp - top of 35 degrees
3. Phosphated to protect against corrosion.
4. Knurling for tight fixation in the hole (do not fall out when turning the part with pins down).
5. Chamfer at the base to grip when removing pins from the hole.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
