PETROGRAD Workbench's hardware kit N1



Rating : (1)
Shipping: worldwide

9740 p (149.8) out of stock

Description

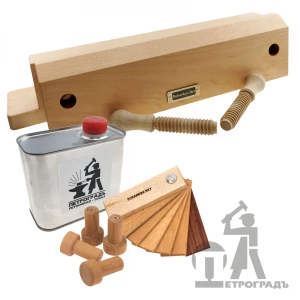

Joinery vice, model Moxon, capture width - 380mm. Dovetail vise, Moxon vise.
A special version of the vice with two screws for convenient work with the edges and ends of the panels. Overall dimensions: 580x145x120. The thickness of the jaws is 45mm.
Maximum width of the workpiece to be clamped (distance between screws) 380mm.
Maximum workpiece thickness (screw travel) - 30mm
The vise was designed by Sergey Aleksandrovich Klein based on the early work of Anry Ruobo and Joseph Moxon.
We did not strive to make an exact copy of the vice, we set ourselves the task of making a functional and affordable tool for comfort when working with a dovetail joint. This vice does not replace the classic workbench, but is a device that expands the arsenal of any craftsman.
We reserve the right to make minor design changes to improve vise performance.

Finishing oil PETROGRAD for workbenches and tool handles, 0.5l. Primer, used to apply the first coat before finishing. Recommended for use on hard or absorbent wood. Recommended for workbenches, tables, handles, woodworking tools and other woodworking parts. For indoor use only. It quickly and deeply penetrates the material and also quickly polymerizes.
Composition:
Tung oil, linseed oil, modified oils (linseed, tung, safflower, walnut), ricin oil, carnauba wax, micronized wax.
Mode of application:
Apply oil evenly to the prepared surface free of dirt and grease using a brush or lint-free cloth. After 10 minutes, wipe off the remaining oil from the surface with a dry, lint-free cloth. After 8 hours (depending on layer thickness and ambient temperature) apply a second coat. Ensure good ventilation of the room, both during application and at the end of work.
Note:
Certain oily, exotic or brightly colored woods and excessive amounts can prevent the oil from drying or greatly slow down the drying process. In this case, good ventilation is needed to speed it up.
- Do not use nitrile gloves for work.
- Safe for hands
- Always wear protective goggles when working.
Storage:
In a sealed container. It should be kept away from sources of fire and sparks.


These round bench rests are made from solid beech and easily fit into a table or workbench with a 19 mm hole. The smooth surface of the stops makes them easy to fit into the hole. Stop length 50 mm, head: Ø 30 mm, height 15 mm, body: Ø 18.5-18.8 mm, height 35 mm. Includes 4 pcs.

Fan gasket for bench press. Size 40x120 mm consists of 7 slats (4,5,5,5,5,5,10 mm). This simple device is designed to help prevent the vise from skewing and jamming by clamping the workpiece to one side of the vise. Just fit as many fan-shaped spacers as you need so that the thickness of the fan-shaped insert is approximately the same as the thickness of your part. When clamping parts with a thickness of more than 40 mm, it is recommended to use junk pieces of wood together with the fan to compensate for the skew. This keeps your workpiece securely in place and prevents the vise mechanism from skewing and jamming. The gaskets are made of various types of wood and have an aesthetic appearance.

Production - factory of joinery and carpentry tools PETROGRAD.

Made in Russia
