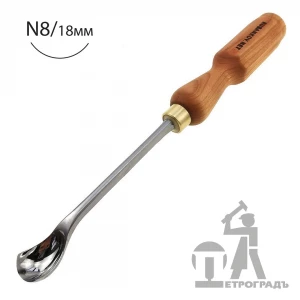

Spoon Gouge Rubankov, N8, 18mm

Checkering tools from series N4 have two sides: the right side with teeth, the left - smooth, is used as a guide. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work. The left blade is devoid of teeth, has a sharp and smooth shape, and exactly follows along the guide line. The right blade has teeth and cuts a new groove during the process of notching from left to right. Thus, it is possible to apply a notch, using the previous groove, as a guide. Beech handle.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

Our canvas tool roll-up (roll organizer, gouges roll) is designed for storage quite huge tools for woodturning and carpentry: chisels, gouges, mortises and etc. Tool roll grants good organization of your tools and not takes too much space, so you can easy roll it and take with you when needed.

• maximum tool length - 650 mm
• made of canvas fabric (100% cotton)
• good stitching
• 8 pockets
• fixing by two cords
• dimensions of pocket 90 x 270 mm
• tool roll dimensions 750 x 700 mm

Set N3 (90 degrees, 18 lines) includes 10 tools  for making checkers on wood.

Gouges for making checkers. Checkering is a type of woodcarving and decorating handles of knives, rifles. This gouges was based on our expirience of use the variety of worldwide know gouges. Model line includes all base gouges from 16 to 32 lines per inch with angles about 60 and 90 dergrees. All gouges blades can be replaced on new ones and can be purchased separately.

Set number 3 includes:

gouge B-2 ( two cutting edges, spacer with tooths )
gouge S-1 ( one cutting edge )
gouge N2-18, 90° ( two cutting edges )
gouge N3-18, 90° ( right router, left cutting edges )
gouge N4-18, 90° ( left router, right cutting edges )
gouge C-1, 90° ( one cutting edge )
gouge L- 9, 90° ( right router with wide space, left cutting edge )
gouge R- 9, 90° ( left router with wide space, right cutting edge )
gouge for corners 90° (or Carving chisel, PETROGRAD, V-type, 90 degrees)
gouge for marking rifle handles
checkering guage
roll bag for carving tools model N1 ( 12 pockets )

1. Checkering tool S-1 has 1 pyramidal tooth. Angle of the top is 90 degrees. The cutter has a convenient beech handle and a rod with a sharp bend perpendicular to the cutting axis and the working part installed on it. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Designed to handle corners and bends, as well as hard-to-reach places.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter has not matter what cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Every element is smooth and beautiful.
The width of the working part is 5 mm, the length of the working part is 5 mm, the apex angle is 90 °

2. Checkering tool N2-18. Both sides with 18 teeth per inch. Used for the application of grooves and their deepening after application. One blade runs along the guideline, while the other marks the next groove. When moving to the next groove, the tool deepens it and again applies the next groove. Cutter 2 It is a combination of tools for expanding and deepening grooves. Beech handle. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work.

3. Checkering tool B-2, is a 2 conical cutter with a working angle of 90 degrees, separated by a wide groove with teeth. A tool for making the roller around the notch. Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.A cutter is just the same as cutting deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Smoothly each groove is obtained. Maximum roller height 1 mm, width 2.5 mm

4. Checkering tools from series N3, have two sides: the right side is smooth, used as a guide, the left - with 18 teeth per inch. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work. The right blade is devoid of teeth, has a sharp and smooth shape, and exactly follows along the guide line. The left blade has teeth and cuts a new groove during the process of notching from right to left. Thus, it is possible to apply a notch, using the previous groove, as a guide. Beech handle.

5. Checkering tools from series N4 have two sides: the right side with 18 teeth per inch, the left - smooth, is used as a guide. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work. The left blade is devoid of teeth, has a sharp and smooth shape, and exactly follows along the guide line. The right blade has teeth and cuts a new groove during the process of notching from left to right. Thus, it is possible to apply a notch, using the previous groove, as a guide. Beech handle

6. Checkering tool C-1 has 1 pyramidal tooth. Angle top 90 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work. It is V-shaped with teeth on both sides. Checkering tool C-1 is designed for applying the original layout of the picture, as well as for deepening the grooves after their application, with other cutters. The wooden handle is made of beech, well balanced and lies comfortably in your hand. Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods. The cutter doesnt look like cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Equal each element is obtained. The width of the working part is 5 mm, the length of the working part is 11 mm, the apex angle 90 degrees

Totally hand made by PETROGRAD-TOOLS factory of joinery and carpentry tools. Made in Russia.

Water stones. Grain size: 3000 and 6000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Japan.

Before using it, be sure to check the stone plane for defects (surface curvature) in 6 places.
Lapping stone made of gabbro-diabase *. It is used for lapping the soles of planers, abrasive stones and other surfaces. Has a perfectly flat surface.
When working, use only abrasives for wet sanding on a paper or self-adhesive backing. Approximate dimensions: 280x150x25mm. The error is within +/- 0.07mm per 200mm.
Rubankov production (Russia)

Gabbro-diabase is a fine-grained full-crystalline volcanic rock, which, in its chemical and mineral composition, is quite close to basalt and most often has a black color. A characteristic feature of this stone is its high hardness and significant compressive strength. One of the distinguishing features of this natural stone is its relatively low silica content (about 45-52%). The color of the mineral can vary. There are specimens that are black, dark gray and even greenish-black in color. The stone has a diabase (also called ophite) structure, which is formed by chaotically located and elongated plagioclase crystals, the entire space between which is occupied by augite.

Abrasive water stones. Grit: 120, 150, 360, 500, 800, 1000,1500, 2000 and 4000 grit. Size 200x70x20mm. The abrasive grain is silicon carbide. Bond - ceramics. Hardness I ensures minimal wear of the stone during work. Steel does not overheat when sharpening. Does not require oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Manufactured in Russia.

Woodworking card scraper, square shape. Designed for scraping wood. Square card scraper made of carbon steel. Edge of carbon steel scraper can be prepared for turning the burr for clean cutting.

• carbon steel
• square shape
• square edges
• thick is 0.8 mm (0.031 inch)
• lenght 150 mm (5.91 inch)
• width 65 mm (2.56 inch)

* Before using the cabinet scraper, we recomend to finish align the planes and sharpen the ends of card. After that ypu can set a burr on edge of card scraper for clean and smooth cuts. For burr aiming, we recommend using a burnisher by Petrograd toolworks.

** The burnisher guide is not included in the package.

Card scraper - a woodworking shaping and surface finishing tool. It is used to manually remove small amounts of wood without tear out, a specialy on tricky grain. Card scrapers are most suitable for working with hardwoods.

Bevel edge chisel Volga. These chisels have a classic design with blades that are bevel-edged to a narrow land on each side, providing excellent clearance when trimming into an angled corner such as in dovetail work, as well as reducing sidewall friction when working in a tight recess.

• blade lenght - 150 mm
• blade width - 26 mm
• blade is made of high-alloyed chrome-manganese steel
• hardened to 59-61 HRc
• basic edge angle - 25 degrees
