Description

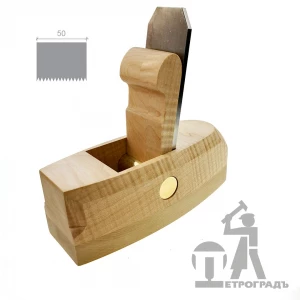

Деревянный рубанок-цинубель с зубчатым ножом. Угол установки ножа 80 градусов. Предназначен для подготовки заготовок под склейку, наклеивания шпона. Также может использоваться для обработки свилеватой и твердой древесины. Колодка и клин выполнены из клёна, а подошва из граба обыкновенного Использование граба таже обусловлена его хорошими скользящими свойствами. Длина рубанка 180 мм, ширина 72 мм. Ширина ножа 50мм. Масса 960 г.

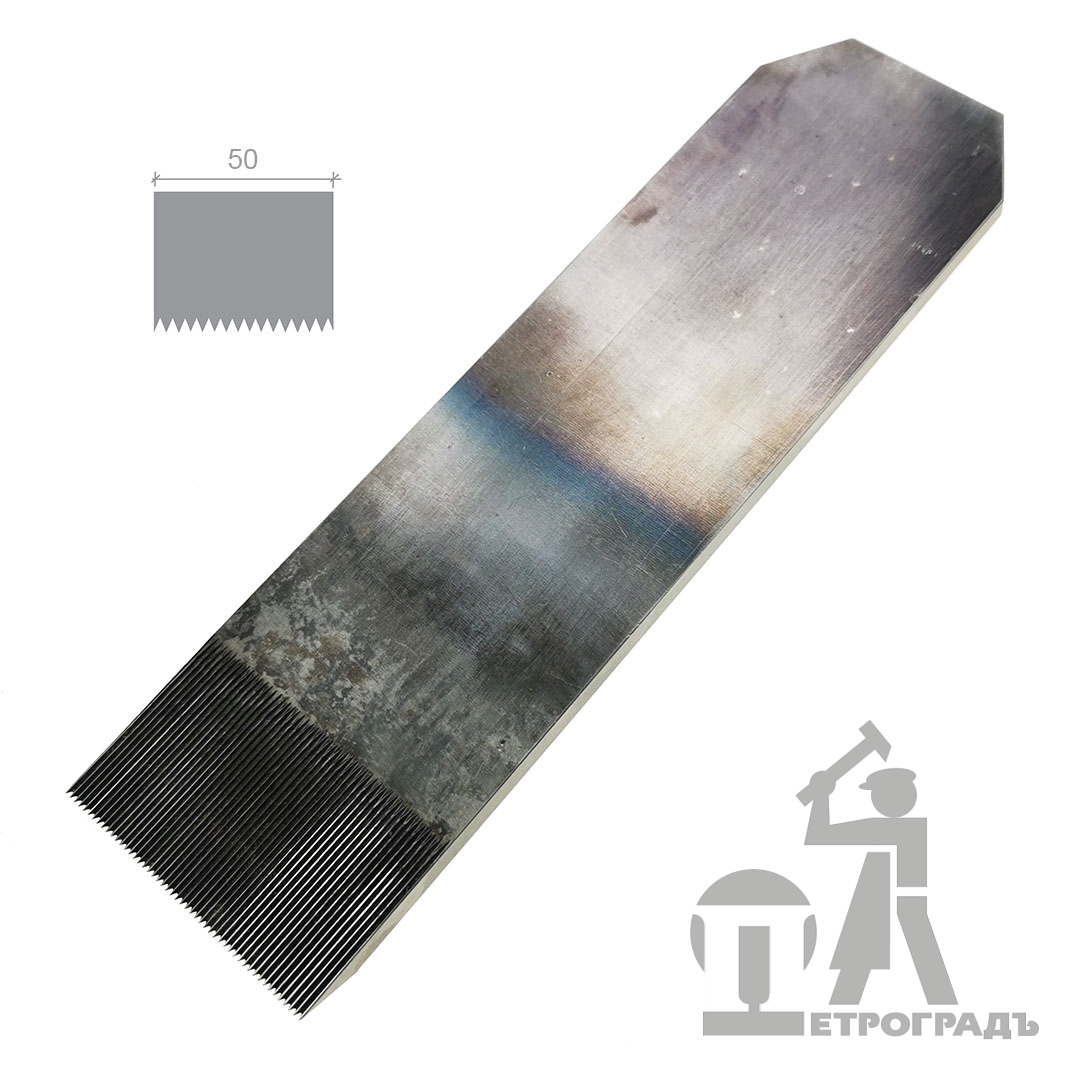

Толщина железка - от 5,5мм (у РК) до 3.5мм (у хвостовика).
Ранее изготовлялись железки толщиной 3.5мм/2.2мм, часть рубанков может быть укомплектована именно такими ножами.
Все железки ПЕТРОГРАДЪ имеют клиновидный спуск с углом 0,5 градуса. Это выгодно отличает их от других рубаночных ножей, и делает их идеально подходящими для деревянных рубанков с клиновой фиксацией ножа. Рабочая сторона ножа, закалённая до твёрдости 59-61 HRc, помечена небольшими точками, остающимися от проверки ножа твёрдомером. Эти точки, имеющиеся на каждом ноже, являются свидетельством проверки ножей и не влияют на работоспособность изделия.
ВАЖНО! Обратная сторона ножа, не помеченная контрольными точками, не является рабочей!
Производитель оставляет за собой право изменять толщину ножа без ухудшения рабочих качеств инструмента.
Share / Save Link:
Specs
Reviews
Instructions ()
Publications
Popular goods
woodworking Awl, 165mm, straight blade, 80*5*5mm, PETROGRAD
Woodworking awl has a square blade profile that allows you to transfer much more power and mark the center of the holes with great control by not stray under the influence of wood fibers.
- Awl blade is made of carbon steel and hardened in oil to HRC 55-60.
- Blade length is 80mm
- Cross section is 5mm x 5mm.
- The shape of the handle allows you to abut the whole palm.
- Handle made from maple, covered with linseed oil and compressed by a brass ring in attachment of blade .
- Awl full length 165mm.
Woodworking awl was hand maded by Petrograd toolworks in Saint-Petersburg Russia.
Carpenter drawknife PETROGRAD N11, u-shaped, with raised arms, 270mm
A flat drawknife with curved and perpendicular cutting edge with handles will be convenient for various operations both in woodworking and carpentry: precise fit of logs in size, manufacture of seats, quick material removal in joinery, etc. Handles are raised above the blade plane and allow work closely to the treated surface. The blade is forged manually from tool steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 55-58 HRC. Sharpening - chamfering up. Handles 140 mm long are made of beech and impregnated with oil. Blade length - 270 mm, width 36 mm. Blade thickness - 6 mm, sharpening angle - 30 degrees. Comes in a leather case with a clasp on the buttons. The design of the drawknives, as well as their sharpening, is recommended by the Russian Carpenters Union for debarking and carpentry work on fitting logs. Other kinds of carpentry work may require regrinding.Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Woodcarving drawknife PETROGRAD, m-shaped, 130mm
Flat M-shaped drawknife is designed for woodworking, wood carving, as well as for carpentry. Ideal for making Windsor chairs. Handles in the same plane as the blade allow easy control of the instrument, and their direction at an angle to the cutting edge allows for less stress on the wrists. The 3.5mm thick blade has a curved cutting edge, made of carbon steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 57-59 HRC. This form of the cutting edge allows you to smoothly enter the material and control the cutting force. Handles 100mm long made of maple, impregnated with oil and reinforced with a brass ring. Blade length - 135 mm, width 20 mm. Sharpening angle - 30grad. Includes leather case to protect the blade. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Sharpening set PETROGRAD N4, for knives, 6 stones
Water stones. Grain size: 150, 360, 500, 1000, 1500 and 2000. Size 15х15х120mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Production - made in Russia.
To select and order an abrasive stone of desired grain size, click on the name of the product.
Carving axe PETROGRAD, model Zvenigorod 9, handle 5
Axe for artistic woodworking and sculpture making. This model was created according to the matrices of the Sweden axe GRANSFORS BRUKS SCULPTOR, building on the models of traditional craft axes. The relatively long, rounded blade with a wide and straight chamfer provides support for wood carving. The cutout on the axe allows you to keep it closer to head for more accurate work. The cutting edge length is 120 mm, the length of the axe is 360 mm. Weight 950 g. The axe is made of excellent steel 65G. The axe undergoes high-quality hardening and forging to a hardness of 58-60 HRc. Forging manually allows you to significantly increase strength. The handle is made of solid maple wood and impregnated with tung oil to prevent rotting. The axe is mounted on the handle with the help of two wooden wedges. Includes a genuine leather case for protecting blade. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia
Picture framing glazier's hammer, PETROGRAD, model N2
Picture framing hammer or glazier's hammer is a hammer with rotating head for strike nails in frame of picture. Because of its 360 degree rotating triangle head it can be easily position on back of a picture frame and precise strike on nail by slide over surface.
- hammer weight 180 grams
- steel rotating triangle head
- steel round head
- full head lenght 70mm
- round head diameter 15mm
- triangle head diameter 22mm
Lathe's tool rest PETROGRAD, arrm 350mm*D20mm, bar D25.4mm*150mm
The hand-arm for the lathe straight, PETROGRAD, 350mm, rod D25.4mm * 150mm. Straight T-shaped from a round bar with a diameter of 20mm. The clamping rod has a diameter of 25.4mm. Working rod length 350mm. Suitable for a variety of lathes. Smooth, round, non-hardened steel bar to avoid spoiling your cutting tool. Allows your cutters to slide easily and work at different angles. The round profile always has one point of support, regardless of the angle of inclination of the cutter, which makes it more convenient and versatile. This tool is for lathes.
Made at the PETROGRAD joinery and carpentry tools factory.
Production (Russia)
PETROGRAD Cup Chuck D55mm for Woodturning Lathe M33х3.5mm
Chuck diameter 55mm. Steel unhardened chuck for turning centers. A simple and reasonably safe chuck compared to a jaw chuck. Simple and reliable and compact. Allows you to work in close proximity to it. Thread М33х3.5mm. Parts are easily and securely fastened in the chuck, as the chuck has a small inner cone. It is also possible to work without a back center.
Made at the PETROGRAD joinery and carpentry tools factory.
Production (Russia)
Panel Gauge PETROGRAD
Этот деревянный рейсмус используется для разметки заготовок с большим расстоянием от края, например дверная панель, филенки или лист фанеры, и т.п. Корпус выполнен из клена, стержень длиной 620 мм из граба. Рабочий диапазон реза 4 - 560мм.
Длина стержня 620мм, ширина колодки - 250мм, высота колодки – 123мм. Ширина ножа — 11 мм. Масса 340 г.
Производство фабрики ПЕТРОГРАДЪ
Sharpening stone PETROGRAD, 200*70*20mm, 3000 grit
Water stones. Grain size: 3000 and 6000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Japan.
