Description

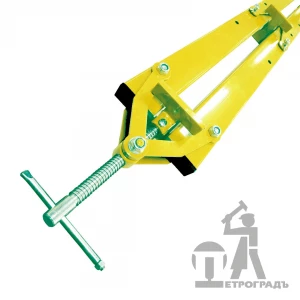

Thanks to the special design of the clamp, uniform pressure is exerted on the workpieces to be glued from 4 sides. This ensures a strong gluing without gaps, provided that the plots are properly planed and glue is of good quality.
Two removable stop pins with a removable pin allow you to quickly rearrange the backgauge to adjust the required dimensions.
Trapezoidal screw length - 250, diameter - 23mm, thread pitch 3mm. (Attention. During operation, the screw must be cleaned of sawdust and lubricated with any machine oil. This will significantly increase the service life of the tool). The guides are made of a rectangular profile 60x30mm and have a wall thickness of 2mm. The clamps are painted with impact-resistant paint.
Made in Russia
