Верстак 1500*600мм, с пазом, ПТ - коробка York HV511, БТ - коробка York HV519



p (0) out of stock
Rating :
Avg. value 0 (by rates of 0 users)

Description

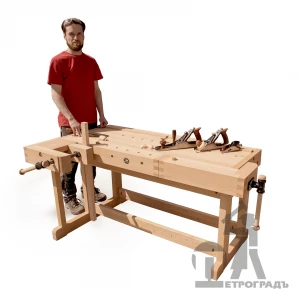

Габариты верстачной доски - 1500х600 мм, толщина щита - 40мм. Обвязочная доска высотой 120 мм с соединениями на ласточкин хвост. На верстаке установлены передние Г-образные тиски (фронтальные) тиски и задние (боковые) коробчатые тиски . Передние тиски сделаны на основе металической винтовой пары  York HV511, ширина раскрытия -170 мм. Ширина подвижной губки передних тисков - 250 мм, высота - 120 мм, толщина - 60 мм. Задние тиски сделаны на основе металической винтовой пары  York HV519 с деревянной направляющей. Ширина прижимной части задних тисков - 120 мм, ширина раскрытия - 150 мм. Губки тисков и опоры подверстачья украшены легким узором. Край верстачной доски в районе задних тисков лежит вне плоскости ножек подверстачья, что позволяет зажимать длинные брусья и рейки в вертикальном положении. Для установки упоров в столешнице и в задних тисках просверлен ряд отверстий. В обвязочной доске с рабочей стороны также просверлены 4 горизонтальных отверстия под упоры. Диаметр отверстий - 19 мм. Для усиления подверстачья между ножками установлена дополнительная верхняя пара продольных перекладин. Материал верстачной доски - буковый щит, подверстачье и рукояти - массив бука. Столешница и подверстачье покрыты тунговым маслом Borma . Верстак необходимо устанавливать на ровную горизонтальную поверхность во избежание коробления и деформации верстачной доски. Высота верстака - 750 мм. Масса верстака - примерно 85 кг.  Габариты верстачной доски с тисками - 1682 х 986 мм. В конструкцию верстака могут вноситься небольшие изменения, не влияющие на его качество.Верстачные упоры в комплекте 4 шт. На все верстаки производства компании Рубанков можно установить дополнительные вертикальные тиски и опорную доску.  К заказу доступны 2 варианта комплектации: верстачная доска с подверстачьем и отдельно верстачная доска. Производство - мастерская Рубанков (Россия).

Верстаки выполнены из массива бука и могут иметь незначительные дефекты и пороки древесины не влияющие на эксплуатационные качества верстака. Также возможно незначительное изменение геометрических размеров в течении годового изменения влажности. При необходимости требуется профилактическое выравнивание верстака (примерно раз в год).

"


l

Share / Save Link:

Specs

Reviews

Instructions ()

Нет файлов

Publications

Set of bench chisels PETROGRAD. The length of the blade - from 120mm to 160mm; width - 6mm, 8mm, 10mm,12mm, 16mm, 20mm, 26mm, 32mm, 40mm, 50mm. Overall length - from 250mm to 295mm.These chisels have a classic design with blades that are bevel-edged to a narrow land on each side, providing excellent clearance when trimming into an angled corner such as in dovetail work, as well as reducing sidewall friction when working in a tight recess. Chisels are made focusing on the experience of old masters of woodworking. The blade is made of high-alloyed chrome-manganese steel and hardened to 60HRc. Comfortable hornbeam handle. The handle at the junction with the blade reinforced brass ring with leather gasket.

14 970p

Set of firmer gouges PETROGRAD. The length of the blade from 120mm to 135mm; width -, 8mm, 10mm, 12mm, 16mm, 20mm, 26mm. Overall length - from 250mm to 295mm. The blade is made of high-alloyed chrome-manganese tool steel and hardened to 60HRc. The handle is made of hornbeam wood. The handle at the junction with the blade reinforced brass ring with leather gasket. Radius surfaces - black. Comfortable tool roll.

12 730p

A flat drawknife with curved and perpendicular cutting edge with handles will be convenient for various operations both in woodworking and carpentry: precise fit of logs in size, manufacture of seats, quick material removal in joinery, etc. Handles are raised above the blade plane and allow work closely to the treated surface. The blade is forged manually from tool steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 55-58 HRC. Sharpening - chamfering up. Handles 140 mm long are made of beech and impregnated with oil. Blade length - 170 mm, width 36 mm. Blade thickness - 6 mm, sharpening angle - 30 degrees. Comes in a leather case with a clasp on the buttons. The design of the drawknives, as well as their sharpening, is recommended by the Russian Carpenters Union for debarking and carpentry work on fitting logs. Other kinds of carpentry work may require regrinding.Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.

3 300p

The flat straight drawknife is designed for woodworking, wood carving, as well as for carpentry. Handles are in the same plane as the blade that allows easy control of the tool. The 3.5 mm thick blade has a straight cutting edge, made of carbon steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 57-59 HRC. Handles 100mm long made of maple, impregnated with oil and reinforced with a brass ring. Blade length - 135 mm, width 20 mm. Sharpening angle - 30grad. Includes leather case to protect the blade. Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.

2 500p

Flat U-shaped drawknife is designed for joinery, woodcarving, as well as for carpentry. Ideal for making Windsor chairs. Handles are in the same plane with the blade that allows easy control of the tool, and their direction at an angle to the cutting edge allows for less stress on the wrists.. The 3.5 mm thick blade has a straight cutting edge, made of carbon steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 57-59 HRC. Handles 100mm long made of maple, impregnated with oil and reinforced with a brass ring. Blade length - 135 mm, width 20 mm. Sharpening angle - 30grad. Includes leather case to protect the blade. Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.



3 000p

Flat M-shaped drawknife is designed for woodworking, wood carving, as well as for carpentry. Ideal for making Windsor chairs. Handles in the same plane as the blade allow easy control of the instrument, and their direction at an angle to the cutting edge allows for less stress on the wrists. The 3.5mm thick blade has a curved cutting edge, made of carbon steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 57-59 HRC. This form of the cutting edge allows you to smoothly enter the material and control the cutting force. Handles 100mm long made of maple, impregnated with oil and reinforced with a brass ring. Blade length - 135 mm, width 20 mm. Sharpening angle - 30grad. Includes leather case to protect the blade. Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.

3 000p

Water stones. Grain size: 150, 360, 500, 1000, 1500 and 2000. Size 15х15х120mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

To select and order an abrasive stone of desired grain size, click on the name of the product.

450p
new

Carving knives with a bevel angle of 30, 37, 40 degrees double-sided sharpening. Blade length - 40 mm, width 13 mm, straight butt. A comfortable maple oval handle is saturated with oil and covered with shellac. The length of the handle - 115 mm. Knife for a wide range of works. The 2.5 mm thick blade is made of 65G (Germany 66Mn4, Ck67, USA 1066) steel,  hardened to 59-61 HRc. Sharpened and ready to go.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.



900p
new%

Carving knives for general use, as well as for large material removal. Blade length 56 mm or 38 mm, beveled butt. Comfortable oval maple handle soaked in oil. The length of the handle - 130mm. Excellent knife for both beginners and professionals. The 1.8 mm thick blade is made of 65G high carbon steel (Germany 66Mn4, Ck67, USA 1066), hardened to 59-61 HRc. All the knives are sharpened and ready to go. Totally hand made at PETROGRAD factory of joinery and carpentry tools.Made in Russia.

500p
new

Carving knives for general use, as well as for large material removal. Blade length 56 mm or 38 mm, beveled butt. Comfortable oval maple handle soaked in oil. The length of the handle - 130mm. Excellent knife for both beginners and professionals. The 1.8 mm thick blade is made of 65G high carbon steel (Germany 66Mn4, Ck67, USA 1066), hardened to 59-61 HRc. All the knives are sharpened and ready to go. Totally hand made at PETROGRAD factory of joinery and carpentry tools.Made in Russia.

900p
