Description

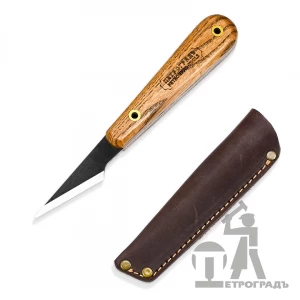

Cutting knife PETROGRAD with a skew of 20 degrees. The knife jamb is one of the most versatile cutting tools used for marking, rough material removal, veneer dissolution and carving of decorative elements.
The blade thickness is about 2 mm. The blade is made of 65G steel (Germany 66Mn4, Ck67, USA 1066) hardened to 59-61 HRc. Comfortable maple rectangular handle with bevels soaked with oil. Knife jamb sharpened and ready to go. Sharpening angle 25 degrees. Knives with a slanting sharpening have a wide range of applications (carving, marking, working with cardboard, marquetry, intarsia, plywood, working with leather, producing musical instruments, modeling and in everyday life).
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Share / Save Link:
Specs
Reviews
Instructions ()
Publications
Recommended products
Cutting knife PETROGRAD, Novgorodskij type, double bevel
Нож ремесленный ПЕТРОГРАДЪ, новгородский тип – классический ремесленный нож, клинок которого выполнен по мотивам древних новгородских ножей. Производство фабрика Петроградъ (Россия).
Carving axe PETROGRAD, model Zvenigorod 7, handle n5
Wood carving axe Zvenigorod VII . This axe is made for artistic processing of wood, such as carving sculptures, bowl carving, dish carving and other stuff.
- Blade width 120 mm
- Sharpening angle - 25 degrees
- Hardness - 55-58HRc
- Handle lenght - 350 mm
- Full weight - 07 kg
Carving axe Zvenigorod VII is quite small and easy to control. It's weight is about 650g, makes it maneuverable and allows you to work more accurate and precise.
The shape of the axe head was designed for carving operations where palm is resting extreamly close to axe head or even on the axe head. This design helps to exelent control of the axe even during long carving sessions. Grip above the head is used for trimming, stripping. This axe model was based on samples from museum "Rubankov" and finalized taking into account the wishes of wood carvers.
The axe head is hand forged from steel 65Г (spring steel) and hardened to 55 - 58 HRc at the cutting edge and along the entire beard, the rest part is normalized to HB280. This hardening allows you to hit the poll without the risk of creating a cracks in the metal.
Head has mounted to handle on 3 wedges, one along the head eye and two in cross section.
Cutting edge is razor sharp and ready to work out of the box. Sharpening angle - 30 degrees.
Axe handle is made of maple* and coated with Danish oil**. The hatchet handle has a longitudinal bend. In cross-section the handle has the shape of an egg, which is very convenient for good grip while carving. Handle has a hole for hanging.
Woodcarving axe Zvenigorod VII are product of Petrograd toolworks and supplied in a leather case for protection of the cutting edge and easy storage. Made in Saint-Petersburg Russia.
Carving axe PETROGRAD, model Zvenigorod 9, handle 5
Axe for artistic woodworking and sculpture making. This model was created according to the matrices of the Sweden axe GRANSFORS BRUKS SCULPTOR, building on the models of traditional craft axes. The relatively long, rounded blade with a wide and straight chamfer provides support for wood carving. The cutout on the axe allows you to keep it closer to head for more accurate work. The cutting edge length is 120 mm, the length of the axe is 360 mm. Weight 950 g. The axe is made of excellent steel 65G. The axe undergoes high-quality hardening and forging to a hardness of 58-60 HRc. Forging manually allows you to significantly increase strength. The handle is made of solid maple wood and impregnated with tung oil to prevent rotting. The axe is mounted on the handle with the help of two wooden wedges. Includes a genuine leather case for protecting blade. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia
Popular goods
Carpenter drawknife PETROGRAD N5, Swedish type, 270mm
The forged drawknife bent in two directions has an advantage over other non-linear drawknives in convenience and control. The blade is forged manually from tool steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 55-58 HRC. Handles 140 mm long are made of beech and impregnated with oil. Blade length - 270 mm, width 36 mm. Blade thickness - 6 mm, sharpening angle - 30 degrees. Comes in a leather case with a clasp on the buttons. The total length of the drawknife is 650 mm. The design of the drawknives, as well as their sharpening, is recommended by the Russian Carpenters Union for debarking and carpentry work on fitting logs. Other kinds of carpentry work may require regrinding. Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Carpenter drawknife PETROGRAD N11, u-shaped, with raised arms, 270mm
A flat drawknife with curved and perpendicular cutting edge with handles will be convenient for various operations both in woodworking and carpentry: precise fit of logs in size, manufacture of seats, quick material removal in joinery, etc. Handles are raised above the blade plane and allow work closely to the treated surface. The blade is forged manually from tool steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 55-58 HRC. Sharpening - chamfering up. Handles 140 mm long are made of beech and impregnated with oil. Blade length - 270 mm, width 36 mm. Blade thickness - 6 mm, sharpening angle - 30 degrees. Comes in a leather case with a clasp on the buttons. The design of the drawknives, as well as their sharpening, is recommended by the Russian Carpenters Union for debarking and carpentry work on fitting logs. Other kinds of carpentry work may require regrinding.Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Sharpening stone PETROGRAD, 200*70*20mm, 800 grit
Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.
Carving knife PETROGRAD, Bogorodsky type, 170mm/40mm
Carving knife PETROGRAD, Finnish type, 175mm/45mm
Sharpening set PETROGRAD N1, for woodworking tools, 3 stones
Water stones. Grain size: 150, 360, 500, 800, 1000, 1500 and 2000. Size 200x70x20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.
To select and order an abrasive stone of desired grain size, click on the name of the product.
Natural lapping stone PETROGRAD, 200*70*20mm
Lapping stone from gabbro diabase. Used for lapping the soles of planes, abrasive stones and other surfaces. It has a perfectly smooth surface. Lapping is carried out with abrasive powders or diamond pastes. Approximate dimensions: 200x70x20 mm. Made in Russia.
Froe PETROGRAD, model Uglich 300мм
Froe is a special cleaving axe (cleaver) for green woodworking, bodging and spoon making. Long blade and perpendicularly handle make it easy to split wood along the grain. Thick blade back would be good to use with mallet or even log*. Froe axe also good for split logs for fireplace, stove or even for making wood shingles and wooden blanks for spoons.
Edge is lenticular sharpened. Froe "Uglich" by petrograd toolworks is perfect choice for making blanks for spoon making. Froe axe is hand forged and totally made in Saint-Petersburg Russia
The book `Practical course of woodworking art` + Atlas of drawings, M. Netyksa
The fundamental book on the treatment of wood for professionals and amateurs, which was the basic textbook on woodworking, the entire first half of the twentieth century. Moscow 1901 / Reprint edition of St. Petersburg 2016. Format 145x215 mm, hard fabric binding, 680 pages, 755 illustrations. Also available is a set of drawings attached to the 1901 edition. The author is M. A. Netyksa, a member of the Scientific Department of the Society for the Distribution of Technical Knowledge.
Table of contents.
Division I.
Chapter I. The wood, its structure and properties ... The age of the twood ... The color of the wood ... The density of the wood ...
Chapter II Cutting wood into boards ... Machine sawing boards ... Diseases, defects and structural features of wood ...
Chapter III Various wood species ...
Chapter IV Chemical painting of wood ... Coloring methods and preparation of dye solutions ...
Division II.
Chapter I. The workbench and some adaptations to it ...
Saws and sawing ...
Chapter II Measuring, marking and testing instruments ... Compasses ...
Chapter III Cleaving, curing, cutting and planing ... Planes and planing ...
Chapter IV Rasps and filings ...
Chapter V. Drills and drilling ... Devices and devices for turning various drills ...
Chapter VI. Chisels ... Slotters ...
Chapter VII Various tools and accessories ... Devices for gluing ...
Chapter VIII. Sharpening ...
Chapter IX The device and acquisition of a workshop ...
Division III. Different types of wooden joints ...
Division IV. Wooden surface finish ...
Division V. Furniture joinery ...
Division VI. Model business ...
Division VII. Machine building ...
Sharpening stone PETROGRAD, 200*70*20mm, 4000 grit
Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.
