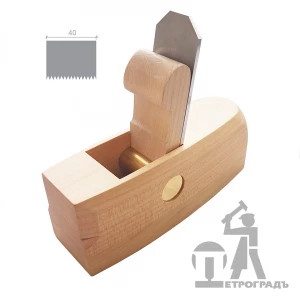

Wooden Toothing Plane PETROGRAD, 40mm/176mm/80degree



6500 p (90.22) out of stock
Rating :
Avg. value 0 (by rates of 0 users)

Description

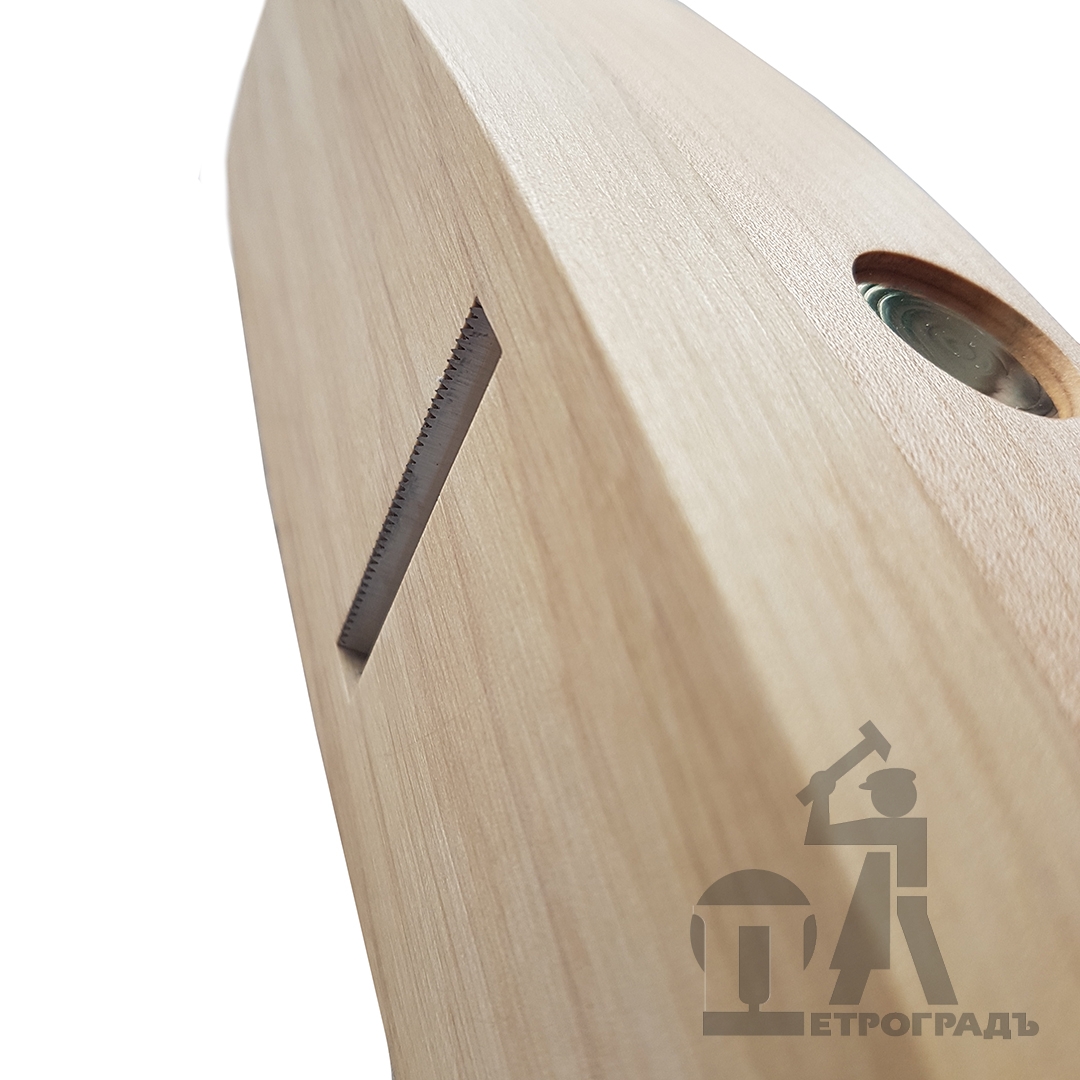

Деревянный рубанок-цинубель с зубчатым ножом. Угол установки ножа 60 градусов. Предназначен для подготовки заготовок под склейку, наклеивания шпона и т.п. Также может использоваться для обработки свилеватой и твердой древесины. Колодка и клин выполнены из клёна, а подошва из граба обыкновенного (однородная, твёрдая, прочная, устойчива против истирания древесина, лат. название Cбrpinus bйtulus). Использование граба таже обусловлена его хорошими скользящими свойствами. Длина рубанка 175 мм, ширина 60 мм.  Ширина ножа 40мм. Масса 0,670 кг.

Толщина железка - от 5.5мм (у РК) до 3.5мм (у хвостовика)
Ранее изготовлялись железки толщиной 3.5мм/2.2мм, часть рубанков может быть укомплектована именно такими ножами.
Это не брак, тонкие ножи работают также хорошо, как и толстые



Все железки ПЕТРОГРАДЪ имеют клиновидный спуск с углом 0,5 градуса. Это выгодно отличает их от других рубаночных ножей, и делает их идеально подходящими для деревянных рубанков с клиновой фиксацией ножа. Рабочая сторона ножа, закалённая до твёрдости 59-61 HRc, помечена небольшими точками, остающимися от проверки ножа твёрдомером. Эти точки, имеющиеся на каждом ноже, являются свидетельством проверки ножей и не влияют на работоспособность изделия.

ВАЖНО! Обратная сторона ножа, не помеченная контрольными точками, не является рабочей!

Производитель оставляет за собой право изменять толщину ножа без ухудшения рабочих качеств инструмента.


l

Share / Save Link:

Specs

Reviews

Instructions ()

Нет файлов

Publications

A flat drawknife with curved and perpendicular cutting edge with handles will be convenient for various operations both in woodworking and carpentry: precise fit of logs in size, manufacture of seats, quick material removal in joinery, etc. Handles are raised above the blade plane and allow work closely to the treated surface. The blade is forged manually from tool steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 55-58 HRC. Sharpening - chamfering up. Handles 140 mm long are made of beech and impregnated with oil. Blade length - 270 mm, width 36 mm. Blade thickness - 6 mm, sharpening angle - 30 degrees. Comes in a leather case with a clasp on the buttons. The design of the drawknives, as well as their sharpening, is recommended by the Russian Carpenters Union for debarking and carpentry work on fitting logs. Other kinds of carpentry work may require regrinding.Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.

3 800p

Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.



1 350p

Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.





1 670p

Flat U-shaped drawknife is designed for joinery, woodcarving, as well as for carpentry. Ideal for making Windsor chairs. Handles are in the same plane with the blade that allows easy control of the tool, and their direction at an angle to the cutting edge allows for less stress on the wrists.. The 3.5 mm thick blade has a straight cutting edge, made of carbon steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 57-59 HRC. Handles 100mm long made of maple, impregnated with oil and reinforced with a brass ring. Blade length - 135 mm, width 20 mm. Sharpening angle - 30grad. Includes leather case to protect the blade. Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.



3 000p

Honing guide PETROGRAD is designed to hold the tool at a given angle when manually grinding on abrasive stones. Min clamping length - 60mm, max. width - 82mm, max. thickness - 7mm. Equipped with self-centering clamp for precise blade positioning. It is used for sharpening chisels, plane blades, etc. The limited applicability for Japanese compound blades. It has a roller that does not damage the stone and makes it easy to grind. Made in Japan

2 080p

Water stones. Grain size: 150, 360, 500, 1000, 1500 and 2000. Size 15х15х120mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

To select and order an abrasive stone of desired grain size, click on the name of the product.

340p

Water stones. Grain size: 150, 360, 500, 1000, 1500 and 2000. Size 15х15х120mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

To select and order an abrasive stone of desired grain size, click on the name of the product.

370p

Water stones. Grain size: 150, 360, 500, 1000, 1500 and 2000. Size 15х15х120mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

To select and order an abrasive stone of desired grain size, click on the name of the product.

450p

Water stones. Grain size: 150, 360, 500, 1000, 1500 and 2000. Size 15х15х120mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

To select and order an abrasive stone of desired grain size, click on the name of the product.

520p

Water stones. Grain size: 150, 360, 500, 1000, 1500 and 2000. Size 15х15х120mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.



750p
