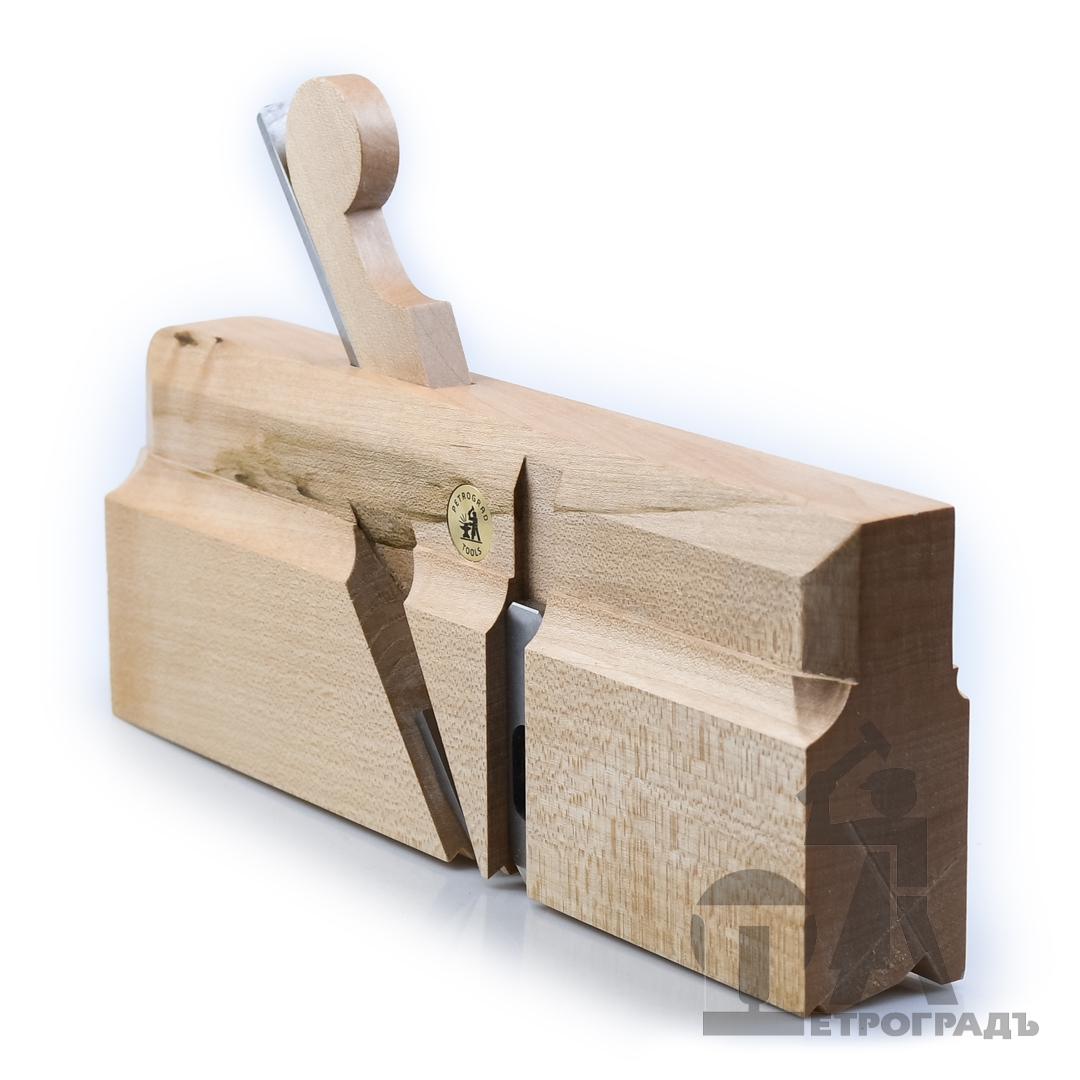

Panel plane PETROGRAD 250mm
Description
Production - factory of joinery and carpentry tools PETROGRAD.
This lightweight and beautifully executed plane is perfect for making figarium fields (panels). The shoe and the wedge are made of maple and impregnated with primer oil - in one layer and the second layer is covered with oil and wax. Knife width 25 mm, tilt angle 55 degrees, bed turn 5 ° from perpendicular to the sidewall. Each knife is tested with a hardness tester. The hard side has 2 points from the diamond cone - test, and control test. The knife has the following dimensions: working part width 25 mm, total length 175 mm. The piece of iron is made of steel 9XC. Hardened to 59-61 HRC. All glands are wedge-shaped with a wedge angle of 0.5 degrees.
Share / Save Link:
Specs
Reviews
Instructions ()
Publications
Popular goods
Carving chisel, PETROGRAD, 6mm
Carving chisels.
The model range includes straight chisels with a width of 2mm, 4mm, 6mm, 8mm, 10mm, 12mm, 14mm. Chisels are made of steel 65 G (Germany 66Mn4, Ck67, USA 1066) and have beech handles coated with tung oil. Blade length - 35 mm, total length - 180 mm, sharpening angle - 30 degrees, blade thickness - 2 mm.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia
Adze PETROGRAD, half round N2
Adze N2 created on the basis of a study of ancient tools, made in the northern regions of Russia and now stored in our Museum of Ancient Instruments.
Forged tempered to hardness - 58-60HRc. The adze is made of spring steel 65 g (Germany 66Mn4, Ck67, USA 1066). The width of the blade is 70 mm. Total length - 500 mm. Weight - 1.3 kg.
Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia
Marking knife PETROGRAD, model N2, arrow form
Marking knives PETROGRAD have a unilateral right or left sharpening and bevel at an angle of 30 and 45 degrees. The blade of the knife is made of high carbon steel and hardened to 59HRC, it passes through the entire handle - this allows you to use it not only as a marking knife, but also as a power knife jamb. Blade thickness - 1.7mm, width - 19mm. The lining is made of beech wood, covered with tung oil and fastened with brass rivets. The length of the knife is 165mm, the blade is 70mm.
Butcher axe, model Rzhev, half round
Classy axe for cutting meat. Forged tempered blade has a hardness of 58-60HRc. The axe is made of 9XC (DIN - 150Cr14) alloyed tool steel. Half round cutting edge. Sharpening 30 degrees. The axe handle is made of maple wood, covered with tung oil and has a curved finish.Fixed to the cross with two wooden wedges. Comes with a leather case with a fixation on the buttons.
The width of the forging is 220 mm, the ax handle is 370 mm long, the total length is 450 mm, and the weight is 2000 g.
Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Checkering tool complete C-1, 90°
Checkering tool C-1 has 1 pyramidal tooth. Angle top 90 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Checkering tool C-1 is designed for applying the original layout of the picture, as well as for deepening the grooves after their application, with other cutters.
The wooden handle is made of beech, well balanced and lies comfortably in your hand.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter doesnt look like cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Equal each element is obtained.
The width of the working part is 5 mm, the length of the working part is 11 mm, the apex angle 90 degrees.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Checkering tool complete N2-22, 90°
Checkering tool No2. Both sides with teeth. Used for the application of grooves and their deepening after application. One blade runs along the guideline, while the other marks the next groove. When moving to the next groove, the tool deepens it and again applies the next groove. Cutter 2 It is a combination of tools for expanding and deepening grooves. Beech handle. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Checkering tool complete S-1, 90°
Checkering tool S-1 has 1 pyramidal tooth. Angle of the top is 90 degrees. The cutter has a convenient beech handle and a rod with a sharp bend perpendicular to the cutting axis and the working part installed on it. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Designed to handle corners and bends, as well as hard-to-reach places.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter has not matter what cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Every element is smooth and beautiful.
The width of the working part is 5 mm, the length of the working part is 5 mm, the apex angle is 90 °
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Carving chisel, PETROGRAD, half round, 10mm
Half round carving chisel PETROGRAD designed for threading medium-sized parts and for detailing small forms. Made of 65G (Germany 66Mn4, Ck67, USA 1066) forged steel. The beech handle is barrel-shaped, which makes it possible to securely and conveniently hold the chisel without tiring the wrist. Coating oil wax. The length of the handle - 140 mm, the total length - 175 mm, width - 10 mm.
Designed for both amateurs and professionals engaged in medium-sized products.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Bit for checkering tool C-1, 90°
Насадка на резец для чекеринга C-1, 90° (одна РК) имеет 1 пирамидальный зуб. Уголы вершин 90 и 60 градусов. Все резцы изготовлены из стали, прошли процесс закалки и обработки. Имеют V-образную форму. Резецы С-1 предназначен для нанесения оригинального макета рисунка, а также для углубления канавок после их нанесения, другими резцами. Высокая рельефность обеспечивает быструю и ровную нарезку на твердых породах древесины. Резцы могут резать, как глубокие так и мелкие пазы, прямые или закругленные углы, параллельные линии или перекрестную штриховку, по направлению волокна или поперек. Не нужно заново делать проход, чтобы обработать неровные участки. При определенных навыках ровной получается каждая канавка.
Производство - фабрика столярных и плотницких инструментов ПЕТРОГРАДЪ.
Сделано в России
Bit for checkering tool S-1, 90°
Насадка на резец для чекеринга S-1, 90° (одна РК) имеет 1 пирамидальный зуб. Углы вершин 90 и 60 градусов. Все резцы изготовлены из стали, прошли процесс закалки и обработки. Имеют V-образную форму. Резцы S-предназначен для обработки углов и изгибов, а также труднодоступных мест. Высокая рельефность обеспечивает быструю и ровную нарезку на твердых породах древесины. Резцы могут резать, как глубокие так и мелкие пазы, прямые или закругленные углы, параллельные линии или перекрестную штриховку, по направлению волокна или поперек. Не нужно заново делать проход, чтобы обработать неровные участки. При определенных навыках ровной получается каждая канавка.
Производство - фабрика столярных и плотницких инструментов ПЕТРОГРАДЪ.
Сделано в России
