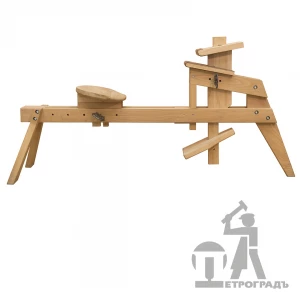

Petrograd Shaving Horse
Description
Строгальная скамья имеет много названий. В иностранном варианте это Shawing horse ( конь для бритья), у нас чаще это называется «Бондарная скамья».
Бондарная скамья имеет такое название, потому что бондари традиционно на ней отесывали клёпки, используя скобель. Отсюда ещё одно название «скамья для работы скобелем». Ну и как бы смешно не звучало «конь педальный» - это тоже про этот агрегат.
Shawing horse незаменим при работе скобелем, стружком на длинных прямых или слегка изогнутых заготовках.
Фиксация заготовки производится путём нажатия на педаль одной ногой. Заготовка укладывается на рабочий стол и зажимается сверху прижимной губкой, которые покрыты кожей, чтобы не повреждать детали.
Конструкция коня разборная. Все детали крепятся с помощью болтов и самоконтрящихся гаек, а также с помощью деревянных клиньев.
Размеры скамьи : высота 860 мм, длина самой скамьи 1650 мм ( без учёта того, что ноги имеют уклон), ширина около 500 мм
Сиденье имеет возможность регулировки как по горизонтали ( 5 вариантов), так и по вертикали ( ход около 5 см)
Минимальная толщина обрабатываемой детали 1 мм, максимальная толщина заготовки 90мм.
Педаль для удобства имеет возможность регулировки в 2 положениях.
Скамья изготовлена из древесины бука.
Дизайн и исполнение мастер столярной мастерской RUBANKOV
Сделано в России.
