Description

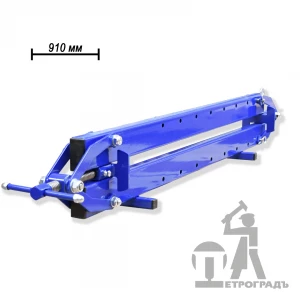

Вайма ПЕТРОГРАДЪ, модель 2, 910мм – это усовершенствованная версия модели номер 1. Используется для склейки деревянных щитов и делянок толщиной до 100мм. Отличительной особенностью являются ножки, благодаря наличию которых вайма стала более устойчивой. Производство фабрика Петроградъ (Россия).
Характеристики ваймы:
- Ширина склеиваемого щита до 910 мм
- Усилие на сжатие 800 кПа.
- Минимальная толщина склеиваемого щита 25 мм
- Максимальная толщина склеиваемого щита 100 мм
- Имеет ножки
Очередной приятной особенностью ваймы является то, что она может быть сложена в транспортировочное состояние, при котором общая длина снижается до 15 см. Сокращение длина достигается посредством перевода шарнира петель внутрь направляющих. Именно в таком состоянии вайма отправляется при доставке транспортной компанией.
Прижимной блок из высокопрочной стали обеспечивает высокое равномерное давление на ламели. Прочный винт обеспечивает качественный прижим. В процессе эксплуатации винт необходимо очищать от опилок и смазывать любым машинным маслом. Это значительно увеличит срок службы инструмента. Благодаря специальной конструкции вайм на склеиваемые заготовки оказывается равномерное давление с 4-х сторон. Это обеспечивает прочную склейку без щелей при условии качественной прифуговки делянок и качественного клея. Два съёмных упорных штифта со съемной шпилькой позволяют оперативно переставлять задний упор для регулировки необходимых размеров.
