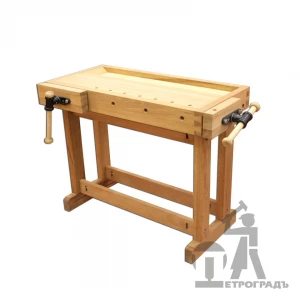

Workbench 1060*500 mm, with tray, front vise - HV515, side vise - HV515
Description
The dimensions of the workbench are 1060x500mm, the thickness of the board is 40mm. Strapping board 115mm high with dovetail joints ". Front vise with opening width 225mm. Front vise movable jaw width 350mm, height 110mm, thickness 50mm. Rear vise width 280mm. Workbench height 850mm. Workbench weight approximately 45 kg. In the rear part of the bench board there is a tray for small tools, tray depth - 35mm, width - 180mm, length - 980mm. Production - Rubankov workshop (Russia)
Share / Save Link:
Видеоматериалы
Specs
Reviews
Instructions ()
Publications
Recommended products
Beech bench dog, 4 ps
These round bench rests are made from solid beech and easily fit into a table or workbench with a 19 mm hole. The smooth surface of the stops makes them easy to fit into the hole. Stop length 50 mm, head: Ø 30 mm, height 15 mm, body: Ø 18.5-18.8 mm, height 35 mm. Includes 4 pcs.
Production - factory of joinery and carpentry tools PETROGRAD.
Made in Russia
Fan gasket for bench press
Fan gasket for bench press. Size 40x120 mm consists of 7 slats (4,5,5,5,5,5,10 mm). This simple device is designed to help prevent the vise from skewing and jamming by clamping the workpiece to one side of the vise. Just fit as many fan-shaped spacers as you need so that the thickness of the fan-shaped insert is approximately the same as the thickness of your part. When clamping parts with a thickness of more than 40 mm, it is recommended to use junk pieces of wood together with the fan to compensate for the skew. This keeps your workpiece securely in place and prevents the vise mechanism from skewing and jamming. The gaskets are made of various types of wood and have an aesthetic appearance.
Production - factory of joinery and carpentry tools PETROGRAD.
Made in Russia
Hold Down Clamp, PETROGRAD, type 1, for workbench top < 50mm
Clamp for quick fixing of workpieces. The clamp is hand forged. To use it, insert it into one of the holes for the stops in the workbench tabletop and press down the workpiece. Depth and height of workpiece clamping 120 mm. The diameter of the clamping rod is 17 mm. The size of the clamp is 290 x 200 mm. Material - steel.
Production - factory of joinery and carpentry tools PETROGRAD.
Made in Russia
Popular goods
Textile 6 pocket Tool Roll, PETROGRAD, for carving knives
This tool roll is designed to store short chisels and knives in an amount of up to 6 pieces. The bag is made of black cotton fabric. The maximum tool length is 180 mm. The length of the tool roll in expanded form -360mm. Compartment for chisels has a strap - to close the cutting part of the knives. Lacing is provided for fixing the twist bag. Made in Russia.
Marking knife PETROGRAD, model N2, arrow form
Marking knives PETROGRAD have a unilateral right or left sharpening and bevel at an angle of 30 and 45 degrees. The blade of the knife is made of high carbon steel and hardened to 59HRC, it passes through the entire handle - this allows you to use it not only as a marking knife, but also as a power knife jamb. Blade thickness - 1.7mm, width - 19mm. The lining is made of beech wood, covered with tung oil and fastened with brass rivets. The length of the knife is 165mm, the blade is 70mm.
Checkering tool complete B-2
Checkering too B-2, is a 2 conical cutter with a working angle of 90 degrees, separated by a wide groove with teeth. A tool for making the roller around the notch. Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
A cutter is just the same as cutting deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Smoothly each groove is obtained.
Maximum roller height 1 mm, width 2.5 mm
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Checkering tool complete C-1, 60°
Checkering tool C-1 has 1 pyramidal tooth. Angle top 60 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Checkering tool C-1 is designed for applying the original layout of the picture, as well as for deepening the grooves after their application, with other cutters.
The wooden handle is made of beech, well balanced and lies comfortably in your hand.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter doesnt look like cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Equal each element is obtained.
The width of the working part is 5 mm, the length of the working part is 11 mm, the apex angle 60 degrees.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Checkering tool complete JT, 90°
Checkering tool has 1 pyramidal tooth. Angle top 90 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Cutter JT is designed for the passage of long lines and correction of existing ones. Due to the length does not go with a given path for which he received the name jointer. The handle is made of beech, well balanced and lies comfortably in your hand.
Pay attention to the high relief, providing fast and smooth cutting. The teeth provide good removal of all hard wood. The cutter is just the same as cutting: deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Every element is smooth.
The width of the working part is 4 mm, the length of the working part is 32 mm, the apex angle is 90 degrees.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Checkering tool complete L- 9, 60°
Checkering tools from L-series have two sides: left side with teeth, right side - smooth, used as a guide. Between the tool tips, the gap is equal to the pitch. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work. The right blade is devoid of teeth, has a sharp and smooth shape, and exactly follows along the guide line. The left blade has teeth and cuts a new groove during the process of notching from right to left. At the same time between the previous line and the new remains empty space - the line width in the usual row. Thus, it is possible to alternate sections with a notch and neat smooth lines of the same width. Such a notch principle is often called "French" or "Scottish."
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Checkering tool complete N2-20, 90°
Checkering tool No2. Both sides with teeth. Used for the application of grooves and their deepening after application. One blade runs along the guideline, while the other marks the next groove. When moving to the next groove, the tool deepens it and again applies the next groove. Cutter 2 It is a combination of tools for expanding and deepening grooves. Beech handle. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work.
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Checkering tool complete S-1, 90°
Checkering tool S-1 has 1 pyramidal tooth. Angle of the top is 90 degrees. The cutter has a convenient beech handle and a rod with a sharp bend perpendicular to the cutting axis and the working part installed on it. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Designed to handle corners and bends, as well as hard-to-reach places.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter has not matter what cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Every element is smooth and beautiful.
The width of the working part is 5 mm, the length of the working part is 5 mm, the apex angle is 90 °
Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.
Bit for checkering tool C-1, 60°
Насадка на резец для чекеринга C-1, 60° (одна РК) имеет 1 пирамидальный зуб. Уголы вершин 90 и 60 градусов. Все резцы изготовлены из стали, прошли процесс закалки и обработки. Имеют V-образную форму. Резецы С-1 предназначен для нанесения оригинального макета рисунка, а также для углубления канавок после их нанесения, другими резцами. Высокая рельефность обеспечивает быструю и ровную нарезку на твердых породах древесины. Резцы могут резать, как глубокие так и мелкие пазы, прямые или закругленные углы, параллельные линии или перекрестную штриховку, по направлению волокна или поперек. Не нужно заново делать проход, чтобы обработать неровные участки. При определенных навыках ровной получается каждая канавка.
Производство - фабрика столярных и плотницких инструментов ПЕТРОГРАДЪ.
Сделано в России
