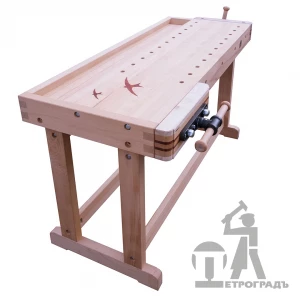

Верстак деревянный 1500*600мм, с лотком, ПТ - HV516, БТ - HV516, авторская работа Михаила Зелинского



57000 p (791.16) out of stock
Rating :
Avg. value 5 (by rates of 1 users)

Description

Верстак столярный, характеристики и особенности

Данный верстак является авторской работой Михаила Зелинского. Верстачная доска украшена элементами из красного дерева «полет ласточки». Губки тисков выполнены из клена, с декоративными вставками из красного дерева.

Передние и задние тиски сделаны на основе металлической винтовой пары от фирмы York (Чехия), ширина раскрытия передних тисков - 275мм, задних - 235мм. Ширина подвижной губки передних тисков - 410мм, высота - 120мм, толщина - 60мм. Ширина задних тисков - 410мм. Губки тисков и опоры подверстачья украшены легким фрезерным узором. Для установки упоров в столешнице просверлен ряд отверстий, 22 штуки , отверстия просверлено в задних тисках. В обвязочной доске с рабочей стороны также просверлены 4 горизонтальных отверстия под упоры, отверстие в губке задних тисков. Диаметр отверстий - 19мм.

В задней части верстачной доски расположен лоток для мелких инструментов, глубина лотка - 35мм, ширина - 150мм, длина - 1420мм. Для усиления подверстачья между ножками установлена дополнительная верхняя пара продольных перекладин.

Материал верстачной доски - буковый щит, подверстачье и рукояти - массив бука. Столешница и подверстачье покрыты тунговым маслом фирмы Borma. Размер подверстачья - 1500х600х800мм, сечение ножек - 90х45мм.

Столярный верстак необходимо устанавливать на ровную горизонтальную поверхность во избежание коробления и деформации верстачной доски. Высота столярного верстака - 850мм. Масса верстака - примерно 60кг.

В конструкцию верстака могут вноситься небольшие изменения, не влияющие на его качество. Верстачные упоры продаются отдельно. На все верстаки производства компании Рубанков можно установить дополнительные вертикальные тиски и опорную доску. Верстак так же можно доукомплектовать подверстачной тумбой для инструментов. К заказу доступны 2 варианта комплектации: верстачная доска с подверстачьем и отдельно верстачная доска. Производство - мастерская Рубанков (Россия).

Столярные верстаки rubankov выполнены из массива бука и могут иметь незначительные дефекты и пороки древесины не влияющие на эксплуатационные качества верстака. Также возможно незначительное изменение геометрических размеров в течении годового изменения влажности. При необходимости требуется профилактическое выравнивание верстака (примерно раз в год).
