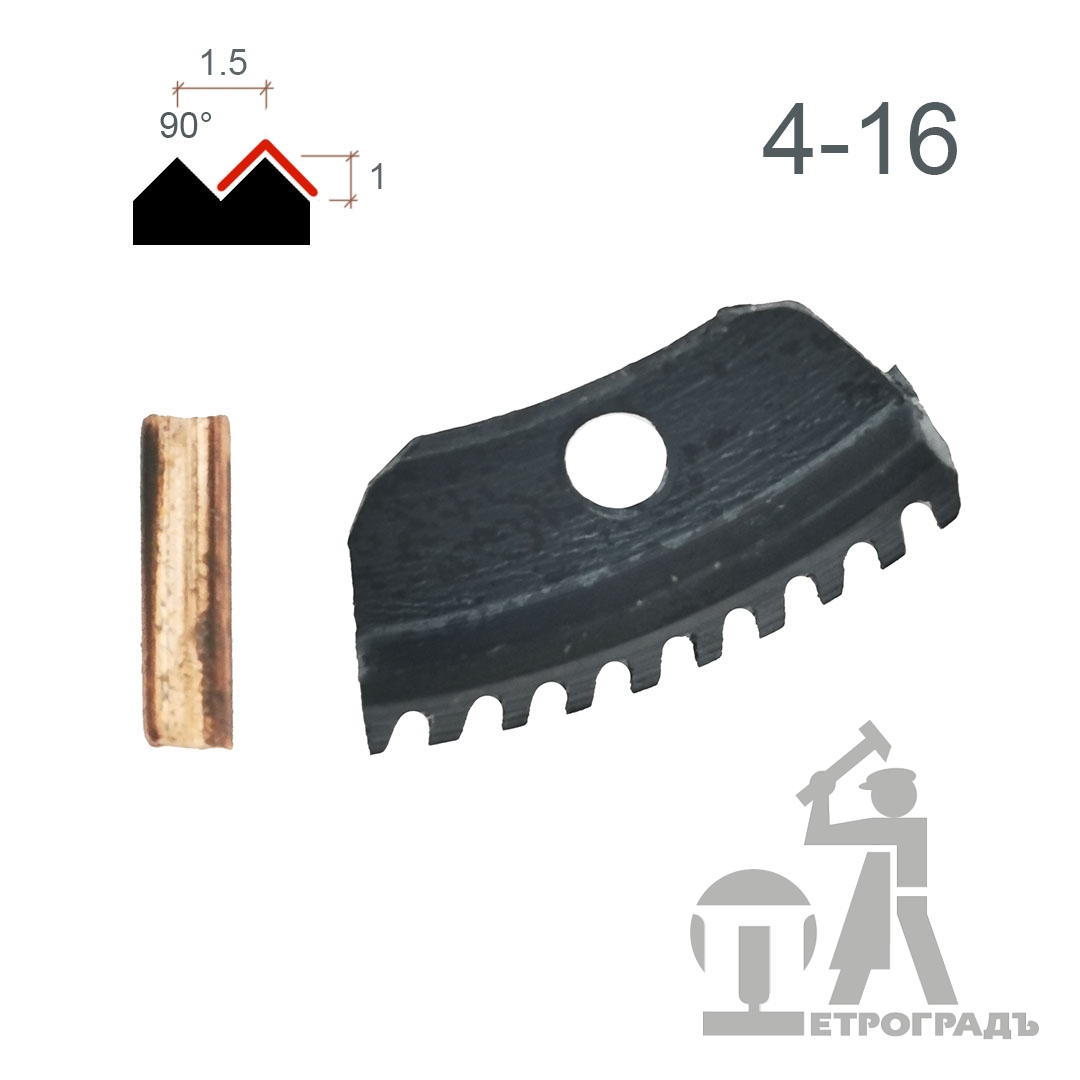

Bit for checkering tool complete N4-16, 90°

Water stones. Grain size: 150, 360, 500, 800, 1000, 1500 and 2000. Size 200x70x20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

To select and order an abrasive stone of desired grain size, click on the name of the product.

The set includes:

Carving knife PETROGRAD, Bogorodsky type, 155mm/40mm
Carving knife PETROGRAD, Finnish type, 175mm/60mm
Carving knife PETROGRAD, skew 30 deg, 155mm/40mm
Carving knife PETROGRAD, Swedish type, 175mm/60mm
Spoon knife, PETROGRAD, D 27mm, right-handed
Carving chisel, PETROGRAD, 10mm
Textile 6 pocket Tool Roll, PETROGRAD, 360*260mm, for carving knives

Wood carving adze by PETROGRAD toolworks.

This adze was developed taking into account the wishes of artisans, as well as our experience in creating carpentry and carving tools. The carving adze is intended for chiseling the internal cavity when creating dishes (trough, broths, cups, bowls, plates, etc.), as well as for roughing the outer surfaces. Scope due to the size of adze.

Developed and designed carving adze - V. Sasin.

The ergonomic handle allows you to securely hold the tool during operation. Expansion at the end of the handle prevents slipping from the hand. The adze handle made of maple and covered with oil. Maple - one of the best wood for the manufacture of handles.

Hand forged blade from steel 65G (Germany 66Mn4, Ck67, USA 1066). Together with the handle has a mass of about 750 grams. Cutting edge sharpening angle - 30 degrees. The width of the working part - 40mm. Cutting edge bending radius - 20mm. If to speak it is applicable to the carving tool  - it is 9 profile.

The eye has a wedge shape. The adze handle slides and splits into 3 wedges.

Sharpening the cutting edge - chamfer outside. It is preferable to use this adze at the finishing stages, for stripping, for smooth formation of the transition from the vertical wall to the flat bottom.

Any carving adze can be used from the beginning to the end. With experience comes the understanding that all three models must be in the arsenal.

Totally hand made at PETROGRAD factory of joinery and carpentry tools.

Made in Russia.

Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.

Hook knife is used for cutting out a hollow in a wooden spoon or scoop, as well as for other similar work. Shallow hook knife N3 has a water drop profile of blade. That's making it perfectly choose for cut wooden spoons bowl. The right version of knife is designed to work with the right hand towards yourself or left hand to outside.

• Knife blade width - 12mm.
• Spoon cutter length - 235 mm
• Handle length - 160 mm
• Hook knife blade made from tool steel (9ХС) and hardened up to 58-60HRC.
• All hook cutters are sharpened and ready to go.
• The outerside of the hook is ring-shaped and perfectly polished. Thats allow you to cut wood cleanly and smoothly without scoring.
• The handle of the hook knife is made of maple and coated with oil.

The right version of hook knife is designed to work with the right hand towards yourself, the left version - with the left hand towards yourself.
Made by Petrograd toolworks in Saint-Petersburg Russia.

Hand forged outdoor axe Roslavl VII with curved handle.

• Total lenght is 370mm ( 14,57inch )
• Height of axe is 140mm ( 5,51inch )
• Lenght of cutting edge is 120mm ( 4,72inch )
• Axe is hand forged from 65G steel (Germany 66Mn4, Ck67, USA 1066).
• Curved cutting edge was straight sharpened.
• Total weight of axe is 0,7kg  ( ± 0,05kg )

• Handle lenght is 320mm ( 12,6inch) and it is made from solid mapple with right grain position.
• The axe comes with leather case for protecting cutting edge.

Axe is well balanced and would be a good choice for a lot types of work. It will be great as outdoor axe, for small carpentry and othe woodwork projects. This is kind of universal axe for everyone.

Axe Roslavl VII produced by Petrograd toolworks in Saint Petersburg Russia.

Set N3 (90 degrees, 18 lines) includes 10 tools  for making checkers on wood.

Gouges for making checkers. Checkering is a type of woodcarving and decorating handles of knives, rifles. This gouges was based on our expirience of use the variety of worldwide know gouges. Model line includes all base gouges from 16 to 32 lines per inch with angles about 60 and 90 dergrees. All gouges blades can be replaced on new ones and can be purchased separately.

Set number 3 includes:

gouge B-2 ( two cutting edges, spacer with tooths )
gouge S-1 ( one cutting edge )
gouge N2-18, 90° ( two cutting edges )
gouge N3-18, 90° ( right router, left cutting edges )
gouge N4-18, 90° ( left router, right cutting edges )
gouge C-1, 90° ( one cutting edge )
gouge L- 9, 90° ( right router with wide space, left cutting edge )
gouge R- 9, 90° ( left router with wide space, right cutting edge )
gouge for corners 90° (or Carving chisel, PETROGRAD, V-type, 90 degrees)
gouge for marking rifle handles
checkering guage
roll bag for carving tools model N1 ( 12 pockets )

1. Checkering tool S-1 has 1 pyramidal tooth. Angle of the top is 90 degrees. The cutter has a convenient beech handle and a rod with a sharp bend perpendicular to the cutting axis and the working part installed on it. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Designed to handle corners and bends, as well as hard-to-reach places.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter has not matter what cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Every element is smooth and beautiful.
The width of the working part is 5 mm, the length of the working part is 5 mm, the apex angle is 90 °

2. Checkering tool N2-18. Both sides with 18 teeth per inch. Used for the application of grooves and their deepening after application. One blade runs along the guideline, while the other marks the next groove. When moving to the next groove, the tool deepens it and again applies the next groove. Cutter 2 It is a combination of tools for expanding and deepening grooves. Beech handle. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work.

3. Checkering tool B-2, is a 2 conical cutter with a working angle of 90 degrees, separated by a wide groove with teeth. A tool for making the roller around the notch. Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.A cutter is just the same as cutting deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Smoothly each groove is obtained. Maximum roller height 1 mm, width 2.5 mm

4. Checkering tools from series N3, have two sides: the right side is smooth, used as a guide, the left - with 18 teeth per inch. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work. The right blade is devoid of teeth, has a sharp and smooth shape, and exactly follows along the guide line. The left blade has teeth and cuts a new groove during the process of notching from right to left. Thus, it is possible to apply a notch, using the previous groove, as a guide. Beech handle.

5. Checkering tools from series N4 have two sides: the right side with 18 teeth per inch, the left - smooth, is used as a guide. All the cutters are made of steel, underwent a process of hardening and processing, for long and reliable work. The left blade is devoid of teeth, has a sharp and smooth shape, and exactly follows along the guide line. The right blade has teeth and cuts a new groove during the process of notching from left to right. Thus, it is possible to apply a notch, using the previous groove, as a guide. Beech handle

6. Checkering tool C-1 has 1 pyramidal tooth. Angle top 90 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work. It is V-shaped with teeth on both sides. Checkering tool C-1 is designed for applying the original layout of the picture, as well as for deepening the grooves after their application, with other cutters. The wooden handle is made of beech, well balanced and lies comfortably in your hand. Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods. The cutter doesnt look like cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Equal each element is obtained. The width of the working part is 5 mm, the length of the working part is 11 mm, the apex angle 90 degrees

Totally hand made by PETROGRAD-TOOLS factory of joinery and carpentry tools. Made in Russia.

Water stones. Grain size: 3000 and 6000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Japan.

Water stones. Grain size: 3000 and 6000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Japan.
