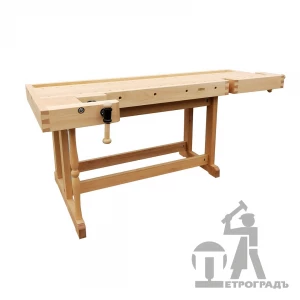

Workbench 2160*600 mm, with tray, front shoulder vise HV511, side shoulder vise HV510



Rating : (1)
Shipping: worldwide

148000 p (2276.24)

Description

The wooden workbench for carpentry, woodworking and joinery. It's a classic example of a workbench, which is known to everyone who had labor lessons at school in childhood (in Russia of course). The workbench is equipped with an G-shape front vise and a rear box vise. The frame board of the workbench has increased height and fixed by dovetail joints.

  • workbench dimensions - 2000x600 mm
  • bench top thickness - 40 mm
  • workbench height - 850 mm
The workbench is equipped with a front G-shape front vise and a box rear vise. The front vise is made on the basis of the York HV511 metal screw pair.

  • opening width -170 mm.
  • width of the movable jaw of the front vice - 250 mm
  • height - 120 mm
  • thickness - 60 mm
The rear vise is made on the basis of a York HV519 metal screw pair with a wooden guide.

  • width of the clamping part of the rear vise - 120 mm
  • opening width - 150 mm.
The vise jaws and underbench supports are decorated with a light pattern. The edge of the workbench in the region of the back vise lies outside the plane of the legs of the underbench, which allows clamping long bars and slats in a vertical position.

A number of holes were drilled in the bench top to install the bench stops - 10 holes, +4 holes were drilled in the rear vise. In the frame board on the working side are also drilled 4 horizontal holes for the stops. Holes diameter - 19 mm. An additional upper pair of longitudinal crossbars is installed between the legs to strengthen the underlay.

  • workbench material - beech sheet
  • underbench and handles - solid beech
  • top and underbench finished with tung oil
  • workbench weight - approximately 95 kg

On the features of the installation of a joiner's workbench.

The workbench must be installed on a flat horizontal surface to avoid warping and deformation of the workbench. Benchboard dimensions with vise - 2182mm x 986mm. Workbench height - 850mm. Minor changes can be made to the design of the workbench without affecting its quality.
Bench stops included 4 pcs. All workbenches produced by the Rubankov company can be equipped with an additional vertical vice and a support board.
Production - factory Petrograd (Russia)

Workbench Specification:
Weight: 95 kg
Type: Joiners workbench
Material: Beech
Front vise: G-shape
Rear vise: Box vise
Tray: with tray
Lenght: 2160 mm
Width: 600 mm
Height: 850 mm

 *The workbenches are made of solid beech and may have minor defects and flaws in the wood that do not affect the performance of the workbench. It is also possible a slight change in geometric dimensions during the annual change in humidity. If necessary, preventive leveling of the workbench is required (about once a year)
