Description

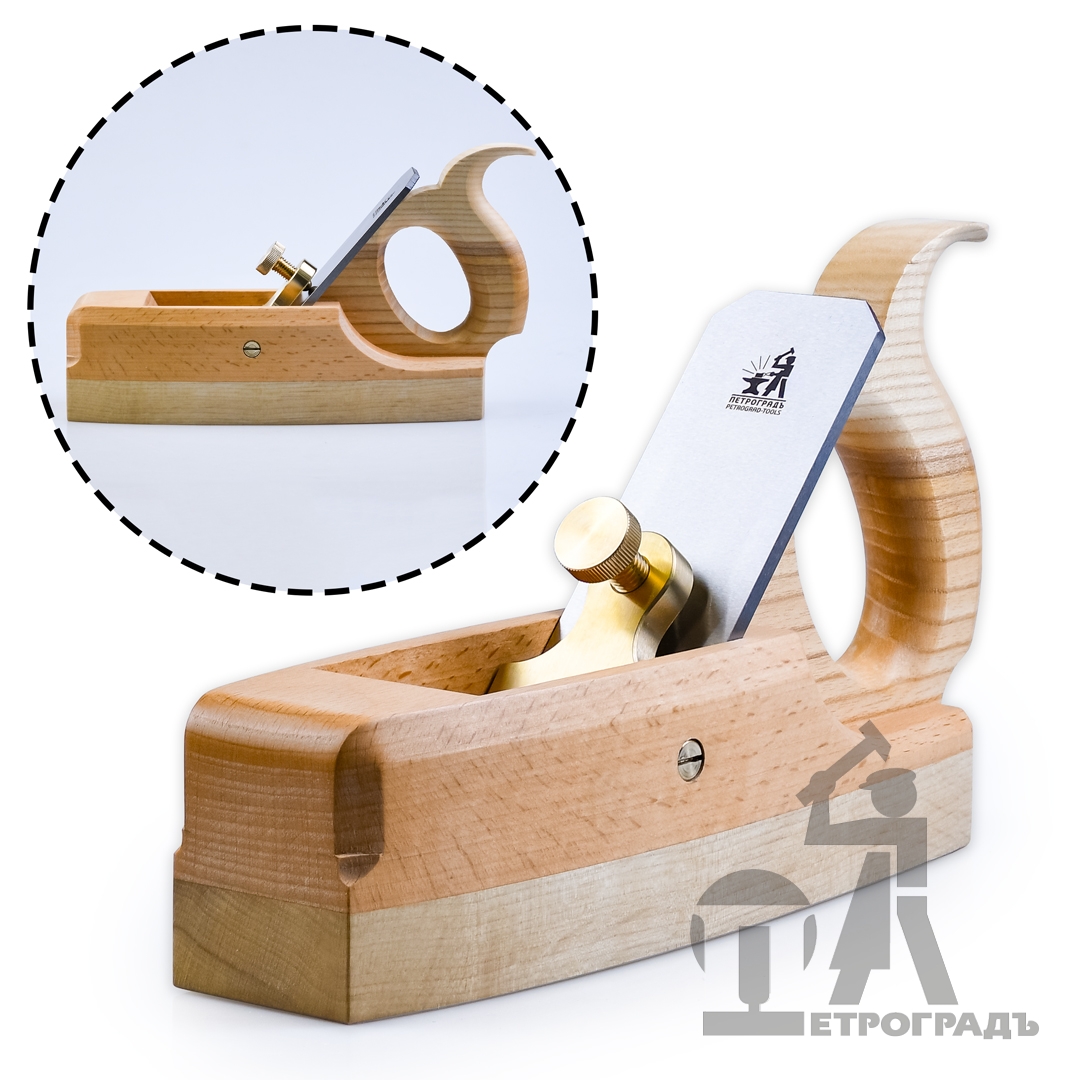

Classic bench plane with brass cap and wedge shaped blade. This is a common wooden hand plane for surface flattening. Sole of hand plane was made of hard wood. We had replace the wooden wedge with brass cap mechanism for more secure fix and for minimizing vibrations of hand plane blade during the work.
- lenght of sole - 230mm
- width of blade - 50mm
Fixing cap is mounted on a strong steel stud, the knob acts as a lever. This design of the clamping cap allows for quick and accurate adjustment of the blade overhang. Body of hand plane was coated with oil. Blade installation angle - 50 °. The blade made of alloy tool steel and hardened to a hardness of 59-61HRC.
- blade installation angle - 50 °
- blade dimensions: length - 175mm
- blade width - 50mm
- blade shape - wedge
- The minimum thickness of the blade is 2.2 mm, the maximum thickness is 3.5 mm
- The blade sharpening angle is 25 ° and the micro chamfer on the edge is 30 °
Hand plane was produced by Petrograd toolworks in Saint Petersburg Russia.
| Weight: | 0.93 kg |
|---|---|
| Type: | Bench plane N4 |
| Blade Steel: | ШХ15 (alloy tool steel) |
| Blade shape: | wedge |
| Blade hardness: | 59-61HRc |
| Edge blade: | Straight |
| Blade lenght: | 175 mm |
| Blade width: | 50 mm |
| Sole material: | hornbeam |
| Body material: | maple |
| Handle material: | Oak* |
| Sole lenght: | 230 mm |
