Checkering tool complete N4-24, 90°

Short chisels PETROGRAD are ideal for precision work, for example in the manufacture of finger joints. Blade length - 95mm; width - 6mm, 12mm, 20mm, 26mm,. Total length - from 200mm. Chisels are specially made focusing on the experience of old masters of carpentry. The blade is made of high-alloy chrome-manganese tool steel and hardened to 60HRc. The edges of the web are chamfered towards the edges, but at the same time the edges of the web have a constant thickness. This design allows you to work comfortably in hard to reach places and especially with dovetail connections. The handle is made of hornbeam wood, the size of the handle is 105x30mm. Uncoated handle - the craftsman chooses the finish himself. The handle at the junction with the blade is reinforced with a brass ring with a leather pad There is also a set of chisels in a twist bag.

Carving knives for general use, as well as for large material removal. Blade length 56 mm or 38 mm, beveled butt. Comfortable oval maple handle soaked in oil. The length of the handle - 130mm. Excellent knife for both beginners and professionals. The 1.8 mm thick blade is made of 65G high carbon steel (Germany 66Mn4, Ck67, USA 1066), hardened to 59-61 HRc. All the knives are sharpened and ready to go. Totally hand made at PETROGRAD factory of joinery and carpentry tools.Made in Russia.

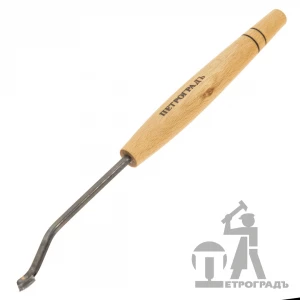

Checkering tool C-1 has 1 pyramidal tooth. Angle top 90 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Checkering tool C-1 is designed for applying the original layout of the picture, as well as for deepening the grooves after their application, with other cutters.
The wooden handle is made of beech, well balanced and lies comfortably in your hand.
Pay attention to the high relief, providing fast and smooth cutting. The tines provide good removal of all hardwoods.
The cutter doesnt look like cutting - deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Equal each element is obtained.

The width of the working part is 5 mm, the length of the working part is 11 mm, the apex angle 90 degrees.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

Checkering tool has 1 pyramidal tooth. Angle top 90 degrees. All the cutters are made of steel, undergone the process of hardening and processing, for long and reliable work.
It is V-shaped with teeth on both sides. Cutter JT is designed for the passage of long lines and correction of existing ones. Due to the length does not go with a given path for which he received the name jointer. The handle is made of beech, well balanced and lies comfortably in your hand.
Pay attention to the high relief, providing fast and smooth cutting. The teeth provide good removal of all hard wood. The cutter is just the same as cutting: deep or shallow grooves, right or rounded corners, parallel lines or cross-hatching, in the direction of the fiber or across. No need to re-do the pass to treat uneven areas. Every element is smooth.

The width of the working part is 4 mm, the length of the working part is 32 mm, the apex angle is 90 degrees.

Totally hand made at PETROGRAD factory of joinery and carpentry tools. Made in Russia.

Планшайба для токарных работ, Петроградъ, D100мм, М33х3.5мм. Накручивается на шпиндель передней бабки. Резьба М33х3.5мм. Планшайба представляет собой стальной незакаленный диск с соединительной трубой. Она имеет фиксатор, а также сквозные отверстия для крепления заготовок.

Изготовлен на фабрике столярных и плотницких инструментов ПЕТРОГРАДЪ.
Производство (Россия)

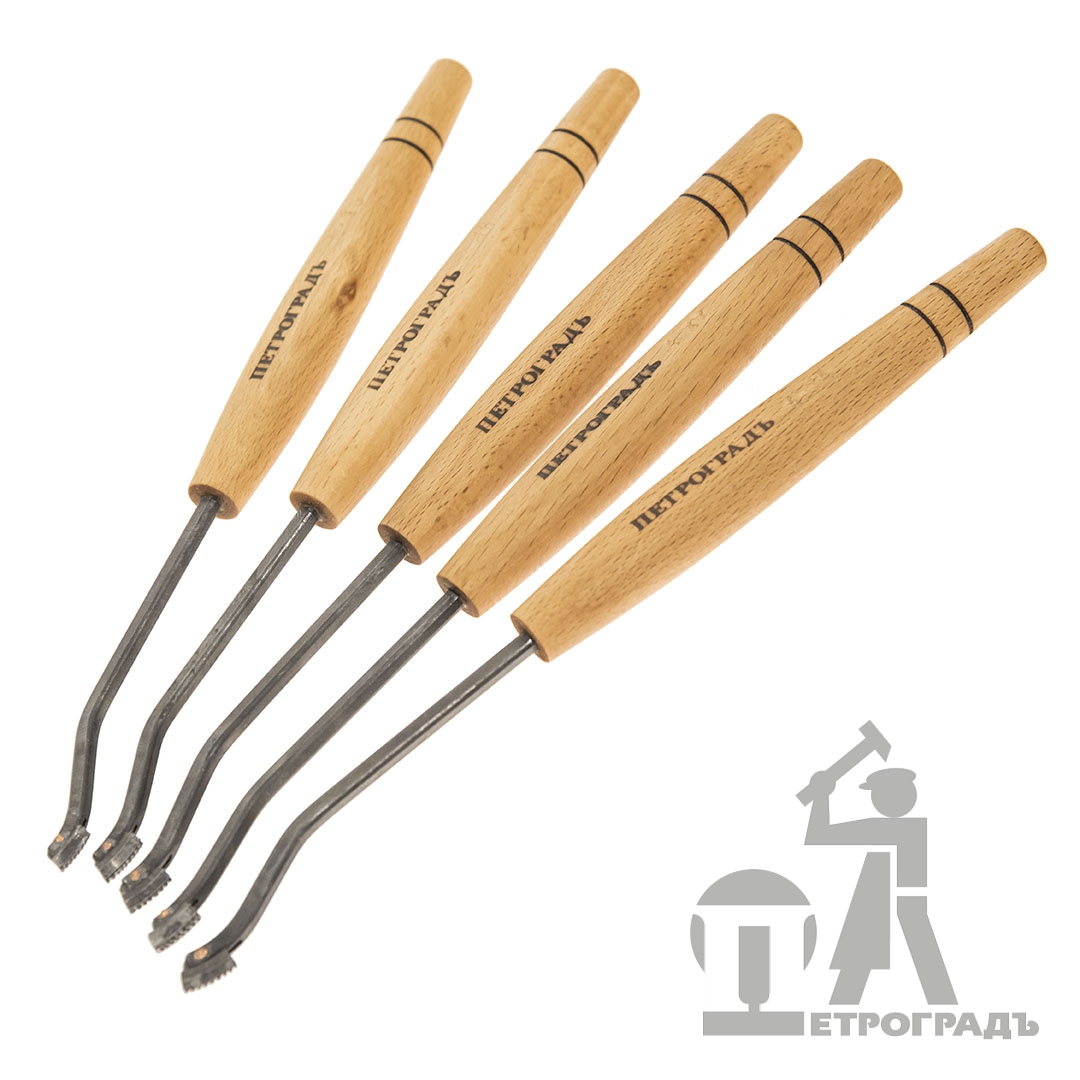

Set N1 (60 degrees, 18 lines) includes 6 tools  for making checkers on wood.

Gouges for making checkers. Checkering is a type of woodcarving and decorating handles of knives, rifles. This gouges was based on our expirience of use the variety of worldwide know gouges. Model line includes all base gouges from 16 to 32 lines per inch with angles about 60 and 90 dergrees. All gouges blades can be replaced on new ones and can be purchased separately.

Set number 1 includes:

• gouge B-2 ( two cutting edges, spacer with tooths )
• gouge S-1 ( one cutting edge )
• gouge N2-18, 60° ( two cutting edges )
• gouge N3-18, 60° ( right router, left cutting edges )
• gouge N4-18, 60° ( left router, right cutting edges )
• gouge C-1, 60° ( one cutting edge )
• Checkering gauge
• roll bag for carving tools ( 6 pockets )

Коврик для заточки инструмента, 250мм*100мм. Используется для работы с заточными абразивными камнями. Препятствует скольжению абразивных камней по рабочему столу тем самым обеспечивает комфортную работу. Изготовлен из высококачественного силикона толщиной 0,5мм. Легко отмывается от шлама. Предохраняет рабочий стол от царапин и повреждений.

Сделано в России

Атлас чертежей к книге "Практический курс столярного дела", М. Нетыкса. Комплект чертежей — 41 лист, формата А3. Автор - М. А. Нетыкса, член Ученого Отдела Общества Распространения Технических Знаний.
