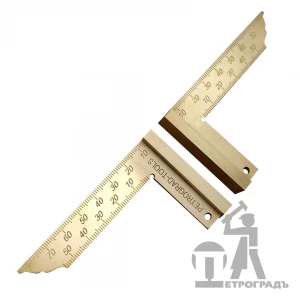

Petrograd Brass Square 85mm with base, two-side marking
Description
Square PETROGRAD, ground. Double-sided, 85 * 50mm in size. The square is one of the most used measuring tools in joinery. Ruler width 15 mm. Metric markings in 1 mm increments on the outside and inside, on both sides. The error of the square is 0.05mm per 100mm. It is used not only for checking 90 degree angles, but also for setting up tools, saws and other tools. Also handy for marking with a pencil or a knife. Material - brass. Engraved etched markings for easy reading.
Made in Russia
Share / Save Link:
Specs
Reviews
Instructions ()
Publications
Recommended products
Petrograd Bevel Setter, 200mm*55mm, for sliding bevels
Petrograd Bevel Setter, 200mm*55mm, for sliding bevels. This is an ingenious tool for setting angles when lining up and for marking or measuring workpieces. Pieces can be positioned freely in line with the etched markings. Special dovetail and polygon markings are on the back, as well as a millimetre scale.
Wooden bench plane PETROGRAD, 50mm/230mm
Classic bench plane with brass cap and wedge shaped blade. This is a common wooden hand plane for surface flattening. Sole of hand plane was made of hard wood. We had replace the wooden wedge with brass cap mechanism for more secure fix and for minimizing vibrations of hand plane blade during the work.
- lenght of sole - 230mm
- width of blade - 50mm
Fixing cap is mounted on a strong steel stud, the knob acts as a lever. This design of the clamping cap allows for quick and accurate adjustment of the blade overhang. Body of hand plane was coated with oil. Blade installation angle - 50 °. The blade made of alloy tool steel and hardened to a hardness of 59-61HRC.
- blade installation angle - 50 °
- blade dimensions: length - 175mm
- blade width - 50mm
- blade shape - wedge
- The minimum thickness of the blade is 2.2 mm, the maximum thickness is 3.5 mm
- The blade sharpening angle is 25 ° and the micro chamfer on the edge is 30 °
Popular goods
Carpenter drawknife PETROGRAD N5, Swedish type, 270mm
The forged drawknife bent in two directions has an advantage over other non-linear drawknives in convenience and control. The blade is forged manually from tool steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 55-58 HRC. Handles 140 mm long are made of beech and impregnated with oil. Blade length - 270 mm, width 36 mm. Blade thickness - 6 mm, sharpening angle - 30 degrees. Comes in a leather case with a clasp on the buttons. The total length of the drawknife is 650 mm. The design of the drawknives, as well as their sharpening, is recommended by the Russian Carpenters Union for debarking and carpentry work on fitting logs. Other kinds of carpentry work may require regrinding. Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Carpenter drawknife PETROGRAD N11, u-shaped, with raised arms, 270mm
A flat drawknife with curved and perpendicular cutting edge with handles will be convenient for various operations both in woodworking and carpentry: precise fit of logs in size, manufacture of seats, quick material removal in joinery, etc. Handles are raised above the blade plane and allow work closely to the treated surface. The blade is forged manually from tool steel 65G (Germany 66Mn4, Ck67, USA 1066) and hardened to 55-58 HRC. Sharpening - chamfering up. Handles 140 mm long are made of beech and impregnated with oil. Blade length - 270 mm, width 36 mm. Blade thickness - 6 mm, sharpening angle - 30 degrees. Comes in a leather case with a clasp on the buttons. The design of the drawknives, as well as their sharpening, is recommended by the Russian Carpenters Union for debarking and carpentry work on fitting logs. Other kinds of carpentry work may require regrinding.Blade was fully hardened through, that allows you to repeatedly honing the blade or his fully re-grind it. Totally hand made at PETROGRAD factory of joinery and carpentry tools.
Made in Russia.
Sharpening stone PETROGRAD, 200*70*20mm, 800 grit
Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.
Carving knife PETROGRAD, Bogorodsky type, 170mm/40mm
Natural lapping stone PETROGRAD, 200*70*20mm
Lapping stone from gabbro diabase. Used for lapping the soles of planes, abrasive stones and other surfaces. It has a perfectly smooth surface. Lapping is carried out with abrasive powders or diamond pastes. Approximate dimensions: 200x70x20 mm. Made in Russia.
Froe PETROGRAD, model Uglich 300мм
Froe is a special cleaving axe (cleaver) for green woodworking, bodging and spoon making. Long blade and perpendicularly handle make it easy to split wood along the grain. Thick blade back would be good to use with mallet or even log*. Froe axe also good for split logs for fireplace, stove or even for making wood shingles and wooden blanks for spoons.
Edge is lenticular sharpened. Froe "Uglich" by petrograd toolworks is perfect choice for making blanks for spoon making. Froe axe is hand forged and totally made in Saint-Petersburg Russia
The book `Practical course of woodworking art` + Atlas of drawings, M. Netyksa
The fundamental book on the treatment of wood for professionals and amateurs, which was the basic textbook on woodworking, the entire first half of the twentieth century. Moscow 1901 / Reprint edition of St. Petersburg 2016. Format 145x215 mm, hard fabric binding, 680 pages, 755 illustrations. Also available is a set of drawings attached to the 1901 edition. The author is M. A. Netyksa, a member of the Scientific Department of the Society for the Distribution of Technical Knowledge.
Table of contents.
Division I.
Chapter I. The wood, its structure and properties ... The age of the twood ... The color of the wood ... The density of the wood ...
Chapter II Cutting wood into boards ... Machine sawing boards ... Diseases, defects and structural features of wood ...
Chapter III Various wood species ...
Chapter IV Chemical painting of wood ... Coloring methods and preparation of dye solutions ...
Division II.
Chapter I. The workbench and some adaptations to it ...
Saws and sawing ...
Chapter II Measuring, marking and testing instruments ... Compasses ...
Chapter III Cleaving, curing, cutting and planing ... Planes and planing ...
Chapter IV Rasps and filings ...
Chapter V. Drills and drilling ... Devices and devices for turning various drills ...
Chapter VI. Chisels ... Slotters ...
Chapter VII Various tools and accessories ... Devices for gluing ...
Chapter VIII. Sharpening ...
Chapter IX The device and acquisition of a workshop ...
Division III. Different types of wooden joints ...
Division IV. Wooden surface finish ...
Division V. Furniture joinery ...
Division VI. Model business ...
Division VII. Machine building ...
Sharpening stone PETROGRAD, 200*70*20mm, 4000 grit
Water stones. Grain size: 150, 360, 500, 1000, 1500, 2000 and 4000 grit. Size 200*70*20mm. Abrasive grain - silicon carbide. Bundle - ceramics. Hardness I ensures minimal wear of the stone during operation. When sharpening does not overheat the steel. Does not require the use of oil. Soak in water for 2-10 minutes before use. Designed for sharpening steels and hard alloys. Made in Russia.
Leather Knife PETROGRAD, type 3, double bevel
The saddle knife is designed for cutting and roughing leather. Can be used for straight cuts and trimming of leather.
Produced in Russia at the PETROGRAD factory
Shallow Hook Knife, PETROGRAD, type 3, left-handed
Hook knife is used for cutting out a hollow in a wooden spoon or scoop, as well as for other similar work. Shallow hook knife N3 has a water drop profile of blade. That's making it perfectly choose for cut wooden spoons bowl. The left version of knife is designed to work with the left hand towards yourself or right hand to outside.
- Knife blade width - 12mm.
- Hook cutter length - 235 mm
- Handle length - 160 mm
- Hook knife blade made from tool steel and hardened up to 58-60HRC.
- All hook cutters are sharpened and ready to go.
- The outerside of the hook is ring-shaped and perfectly polished. Thats allow you to cut wood cleanly and smoothly without scoring.
- The handle of the hook knife is made of maple and coated with oil.
The right version of hook knife is designed to work with the right hand towards yourself, the left version - with the left hand towards yourself.
Made by Petrograd toolworks in Saint-Petersburg Russia.
