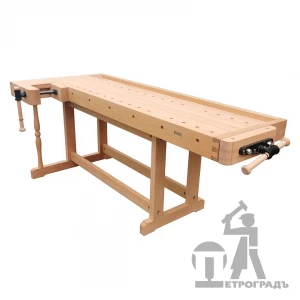

Верстак 2000*600мм, с лотком, ПТ - коробка York HV511, БТ - York 516



p (0) out of stock
Rating :
Avg. value 5 (by rates of 1 users)

Description

Габариты верстачной доски - 2000х600 мм, толщина щита - 40мм. Обвязочная доска высотой 120 мм с соединениями на ласточкин хвост. На верстаке установлены передние Г-образные тиски (фронтальные) тиски и задние (боковые) коробчатые тиски . Передние тиски сделаны на основе металической винтовой пары  York HV511, ширина раскрытия -170 мм. Ширина подвижной губки передних тисков - 250 мм, высота - 120 мм, толщина - 60 мм. Задние тиски сделаны на основе металической винтовой пары  York HV516 с деревянной направляющей. Ширина прижимной части задних тисков - 410 мм, ширина раскрытия - 275 мм. Губки тисков и опоры подверстачья украшены легким узором. Край верстачной доски в районе задних тисков лежит вне плоскости ножек подверстачья, что позволяет зажимать длинные брусья и рейки в вертикальном положении. Для установки упоров в столешнице и в задних тисках просверлен ряд отверстий. В обвязочной доске с рабочей стороны также просверлены 4 горизонтальных отверстия под упоры. Диаметр отверстий - 19 мм. Для усиления подверстачья между ножками установлена дополнительная верхняя пара продольных перекладин. Материал верстачной доски - буковый щит, подверстачье и рукояти - массив бука. Столешница и подверстачье покрыты тунговым маслом Borma . Верстак необходимо устанавливать на ровную горизонтальную поверхность во избежание коробления и деформации верстачной доски. Высота верстака - 850 мм. Масса верстака - примерно 85 кг.  Габариты верстачной доски с тисками - 2182x986 мм. В конструкцию верстака могут вноситься небольшие изменения, не влияющие на его качество.Верстачные упоры в комплекте 4 шт. На все верстаки производства компании Рубанков можно установить дополнительные вертикальные тиски и опорную доску.  К заказу доступны 2 варианта комплектации: верстачная доска с подверстачьем и отдельно верстачная доска. Производство - мастерская Рубанков (Россия).

Верстаки выполнены из массива бука и могут иметь незначительные дефекты и пороки древесины не влияющие на эксплуатационные качества верстака. Также возможно незначительное изменение геометрических размеров в течении годового изменения влажности. При необходимости требуется профилактическое выравнивание верстака (примерно раз в год).
