Description

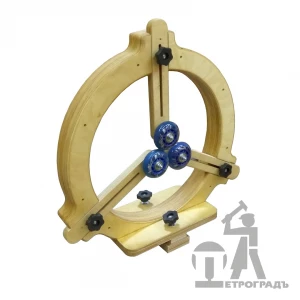

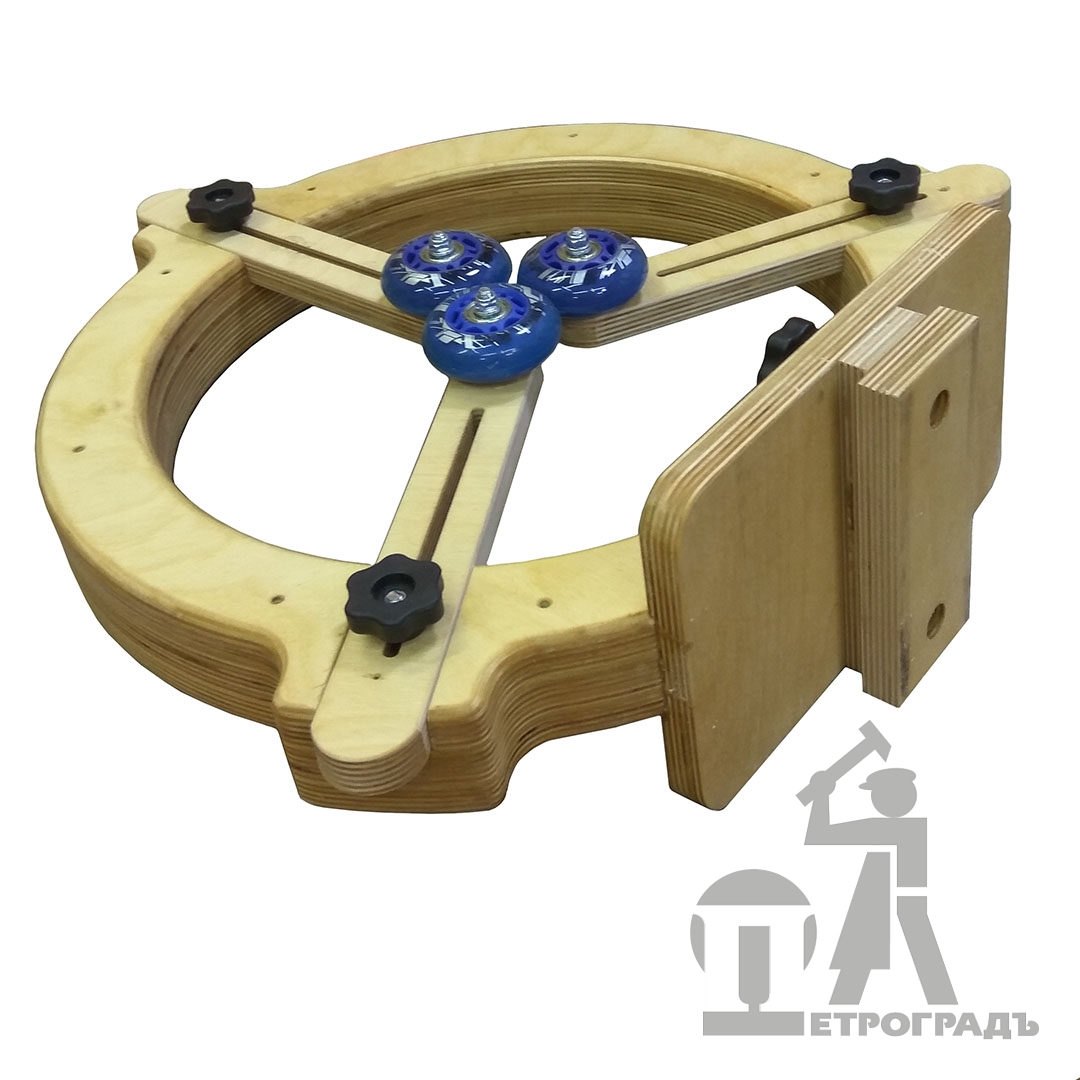

Люнет предназначен для создания дополнительной опоры при обработке длинных и не жестких заготовок.
- Предназначен для станков с высотой центров 200мм.
- Заготовок диаметром не более 260мм и не менее 15мм.
- Изготовлен из фанеры толщиной 52мм.
- Рассчитан на станину толщиной 11мм.
- Расстояние между направляющими станины 49мм.
- Имеет три точки опоры заготовки.
- Колеса мягкие и не оставляют следов на заготовке.
- Подшипники колес имеют пылезащитную конструкцию.
- Также штанги имеют симметричную конструкцию и имеют возможность разворачиваться роликами внутрь.
- Фиксация штанг, а также основания люнета производится вручную.
- Перестройка на другой диаметр занимает всего за несколько секунд.
Люнет разработан начальником производства компании «Петроградъ» и преподавателем школы «Рубанков. нет» Дмитрием Николаевичем Пушиным.
Производство - фабрика столярных и плотницких инструментов ПЕТРОГРАДЪ.
Сделано в России
